Pumping Resin into the Resin Vat

This manual shows how to pump the resin into the vat.

1

Resin Bottle Installation

1
2

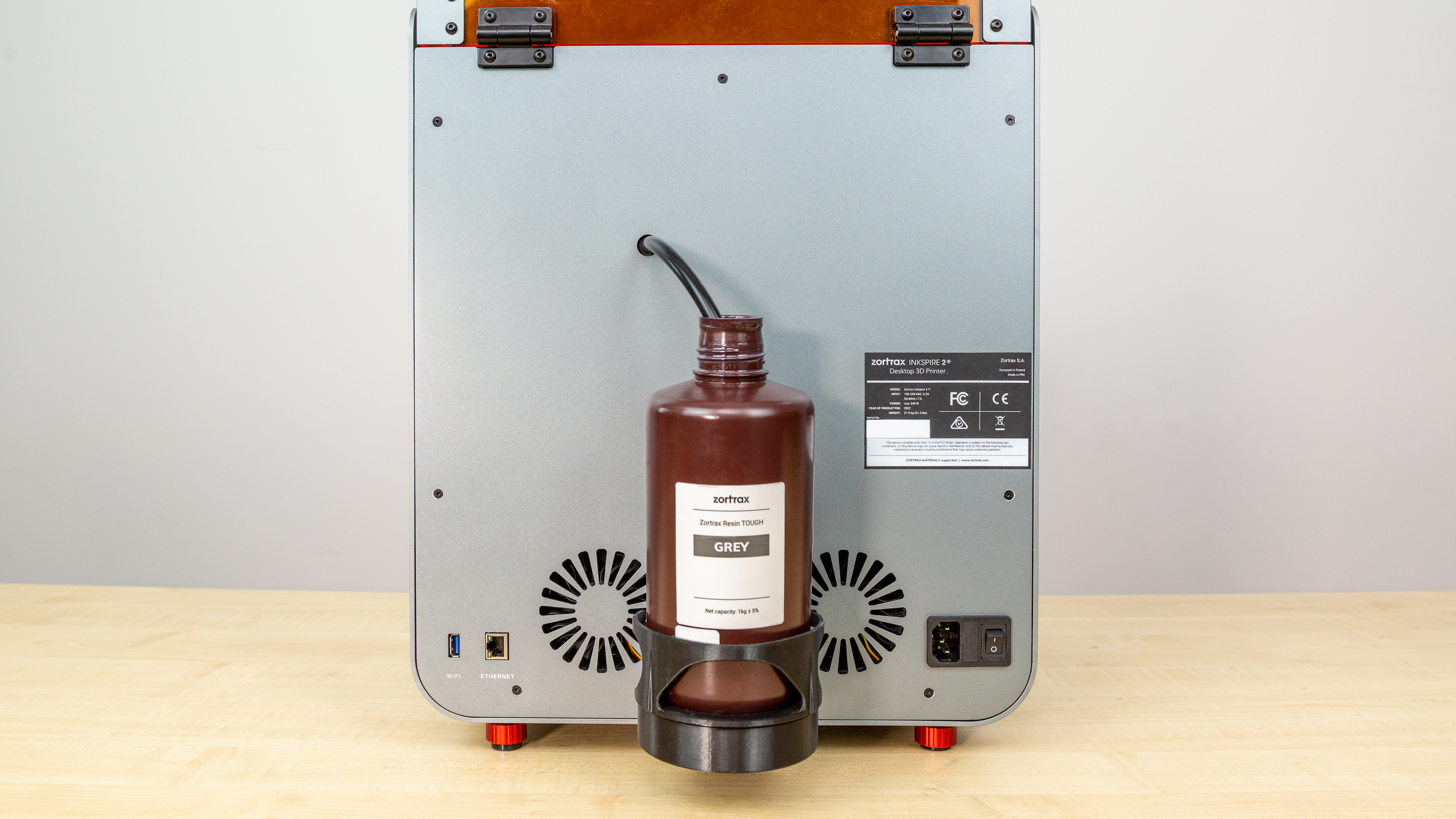

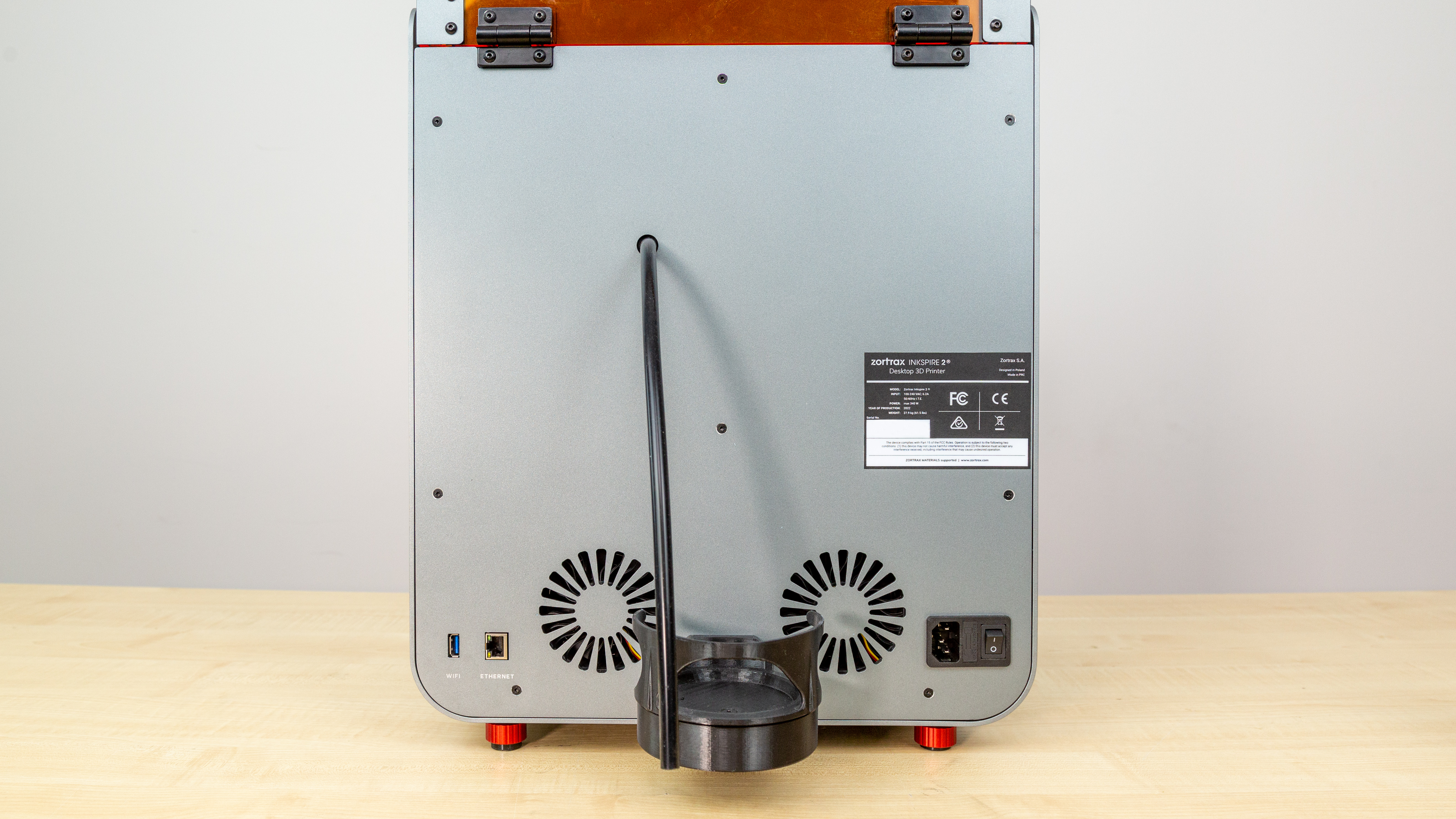

Place the resin bottle in the bottle holder at the back of the printer, remove the cap and insert the resin tube into the bottle.

2

Choosing the Resin Type

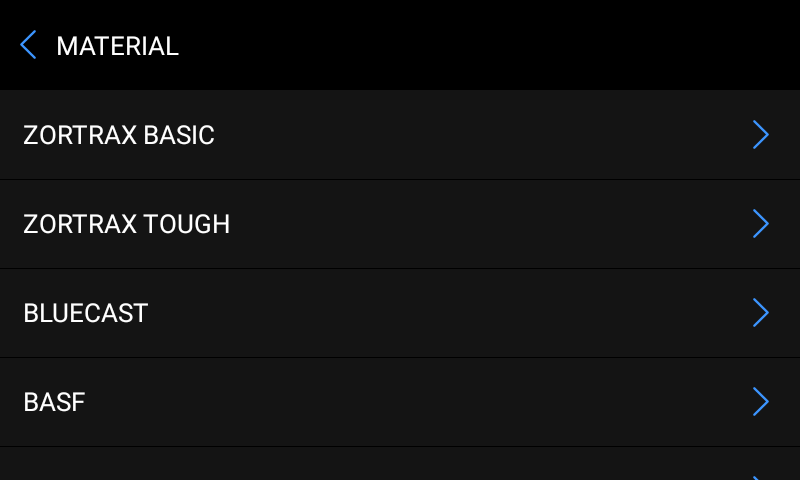

From the Menu select Tools and then Material. Choose the same resin type as in the bottle.

3

Pumping the Resin

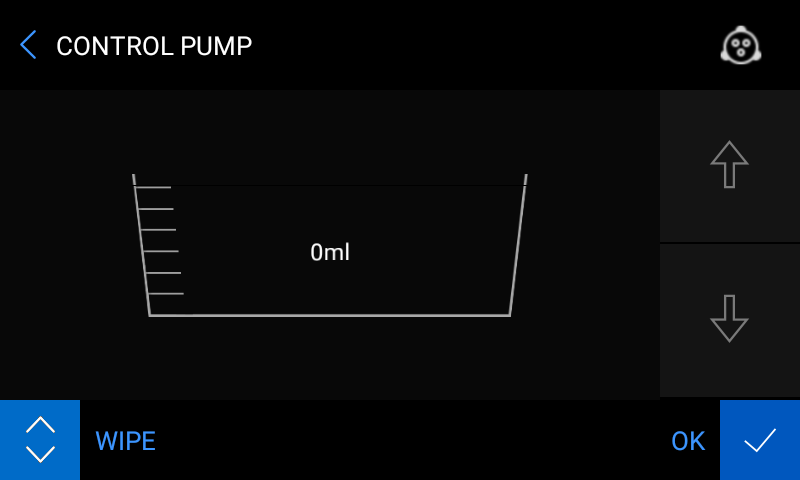

From the Menu select Tools, then Resin Level Control System and choose Control Pump. Start pumping the resin by clicking the down arrow.



4

Automatic Resin Pumping

Pressing the down arrow for a few seconds starts automatic resin pumping.
