Guides for Ameralabs Resins

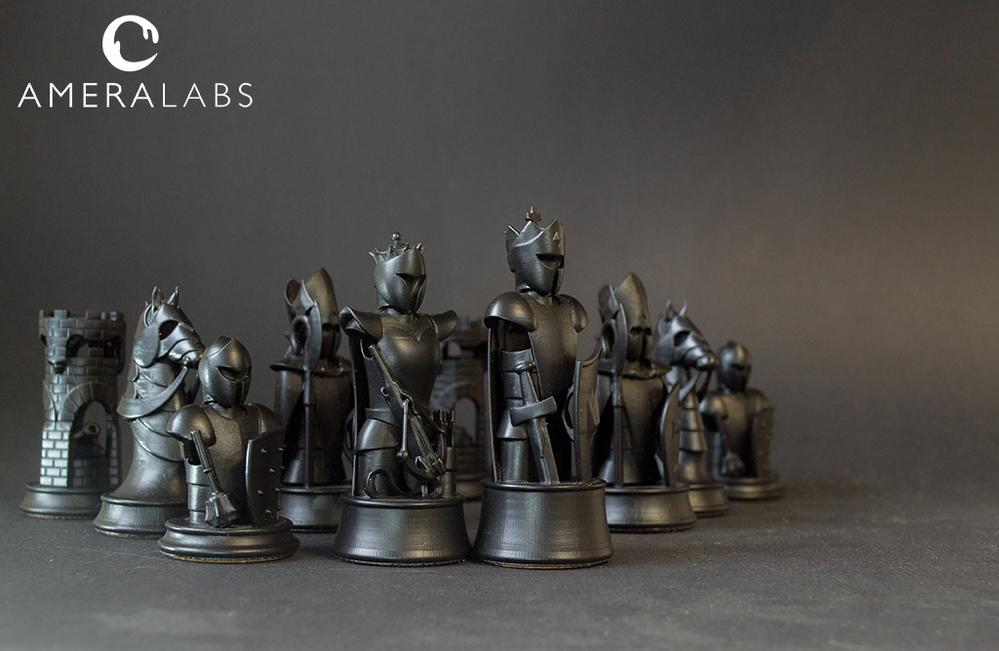

AMD-3 LED is a material intended for advanced modelling and artistic projects rich in details. It cures extremely rapidly under UV light, which results in shorter printing times. All other features of this resin were developed with one purpose in mind: to bring to life even the lightest expressions and finest features of your characters and miniatures, including hair and wrinkles.

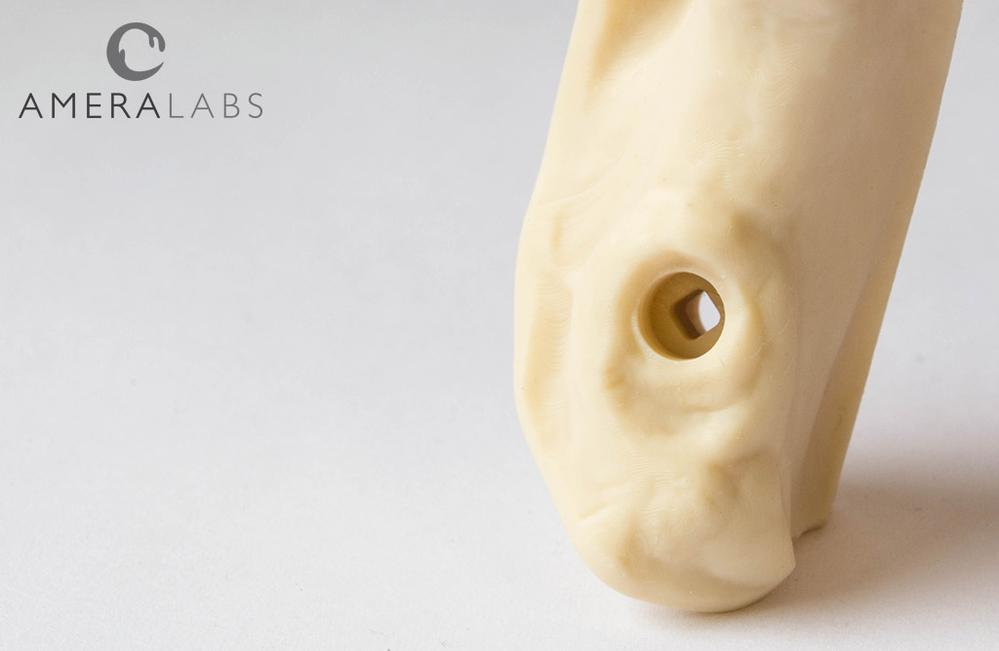

DMD-21 LED Dental model resin stands out by its accuracy and high printing speed. Thanks to high resolution, maximum dimensional accuracy and stability, the material meets the highest demands of creators involved in model production. It cures fast which allows you to 3D print in less time with lower costs.

1

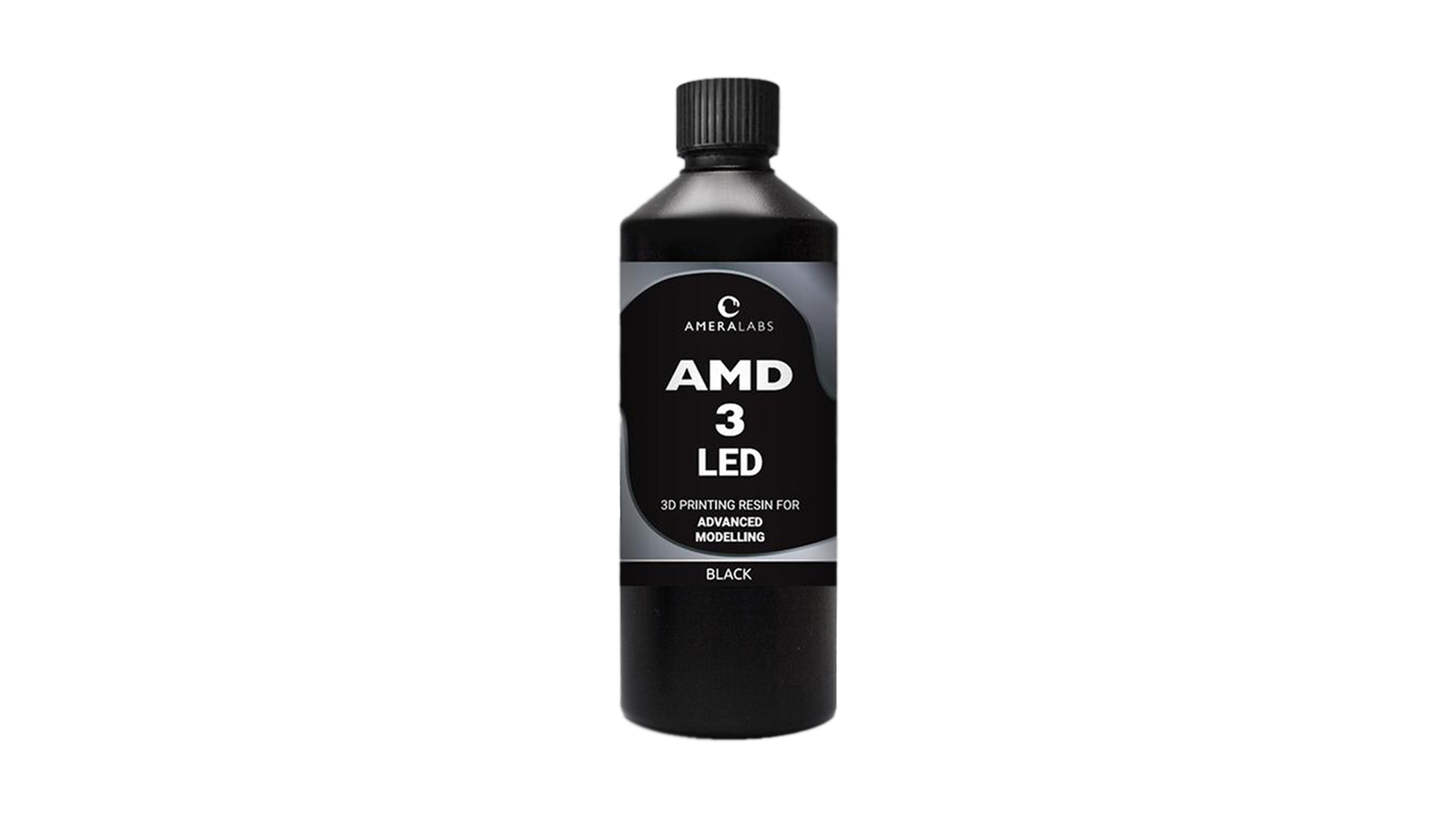

AMD-3 LED Resin


Properties

  • Viscosity at 25° C – 180 – 200 cPs
  • Hardness (ISO 868) – 85 Shore D
  • UV Lightsource Wavelength – 365 – 420 nm
  • Shrinkage – ~2%

Features

  • FAST. Resin hardens extremely fast, resulting in shorter printing time.
  • LOW VISCOSITY. Easier to clean your parts before post-curing and to maintain all features of the original model.
  • LOW ODOR, LOW SKIN IRRITATION. Gloves and simple ventilation is all you need to comfortably print with this resin.
  • NO PIGMENT SETTLING. Stabilized pigment dispersion enables extremely long 3D printing sessions. There is no significant pigment settling for days.
  • LOW SHRINKAGE. Printed models do not deform because of shrinkage.
  • BLACK COLOR. Carefully pigmented to get ideal color that expresses the most intricate details.
  • HARD. Final prints are hard and stiff, allowing you to capture thin parts of the model.

Print Settings

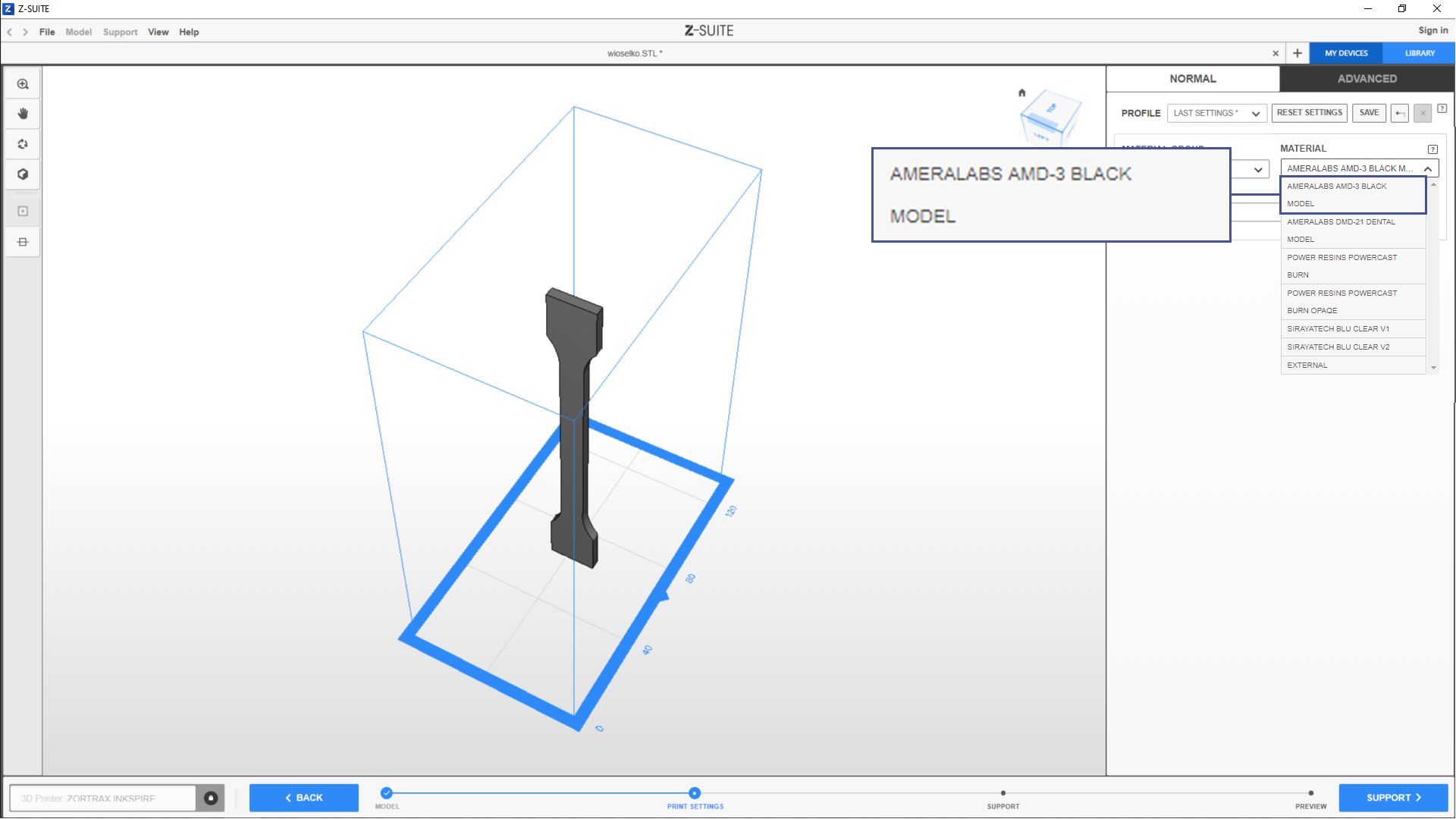

First, change the Material Group to External, and then select the AMERALABS AMD-3 BLACK MODEL from the drop-down list.

Next, set the Layer thickness with which you are going to print your model. This parameter determines the height of each layer. Finer layers provide better surface quality but make the printing process more time-consuming.

2

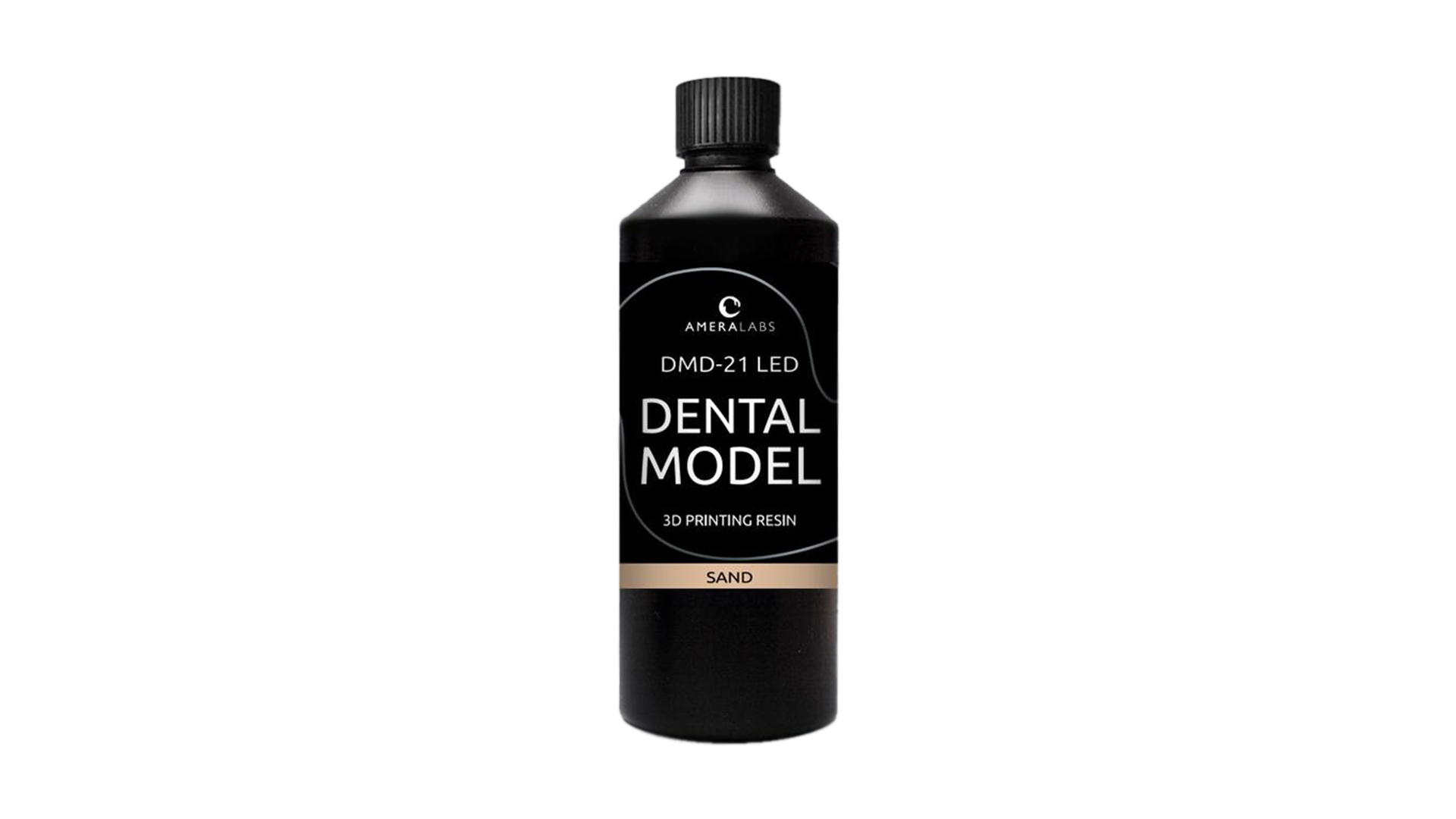

DMD-21 LED Resin


Properties

  • Viscosity at 25° C – 200 – 220 cPs
  • Hardness (ISO 868) – 80 – 90 Shore D
  • UV Lightsource Wavelength – 365 – 420 nm
  • Shrinkage – ~0,5%

Features

  • FAST. Resin hardens extremely fast, resulting in shorter printing time.
  • LOW VISCOSITY. Easier to clean your parts before post-curing and to maintain all features of the original model.
  • EXCELLENT DIMENSIONAL STABILITY. Material has very low flexibility and produces models with accurate dimensions. Resistant to mechanical stress and chemicals.
  • LOW ODOR, LOW SKIN IRRITATION. Gloves and simple ventilation is all you need to comfortably print with this resin.
  • NO PIGMENT SETTLING. Stabilized pigment dispersion enables extremely long vertical 3D printing sessions. There is no significant pigment settling for days.
  • LOW SHRINKAGE. Printed models do not deform because of shrinkage.
  • SAND COLOR. Carefully pigmented to get ideal color (L=78, A=6, B=18) that expresses the most intricate details and is pleasing for patient-facing models.
  • HARD. Final prints are hard and stiff, allowing you to capture thin parts of the model.

Print Settings

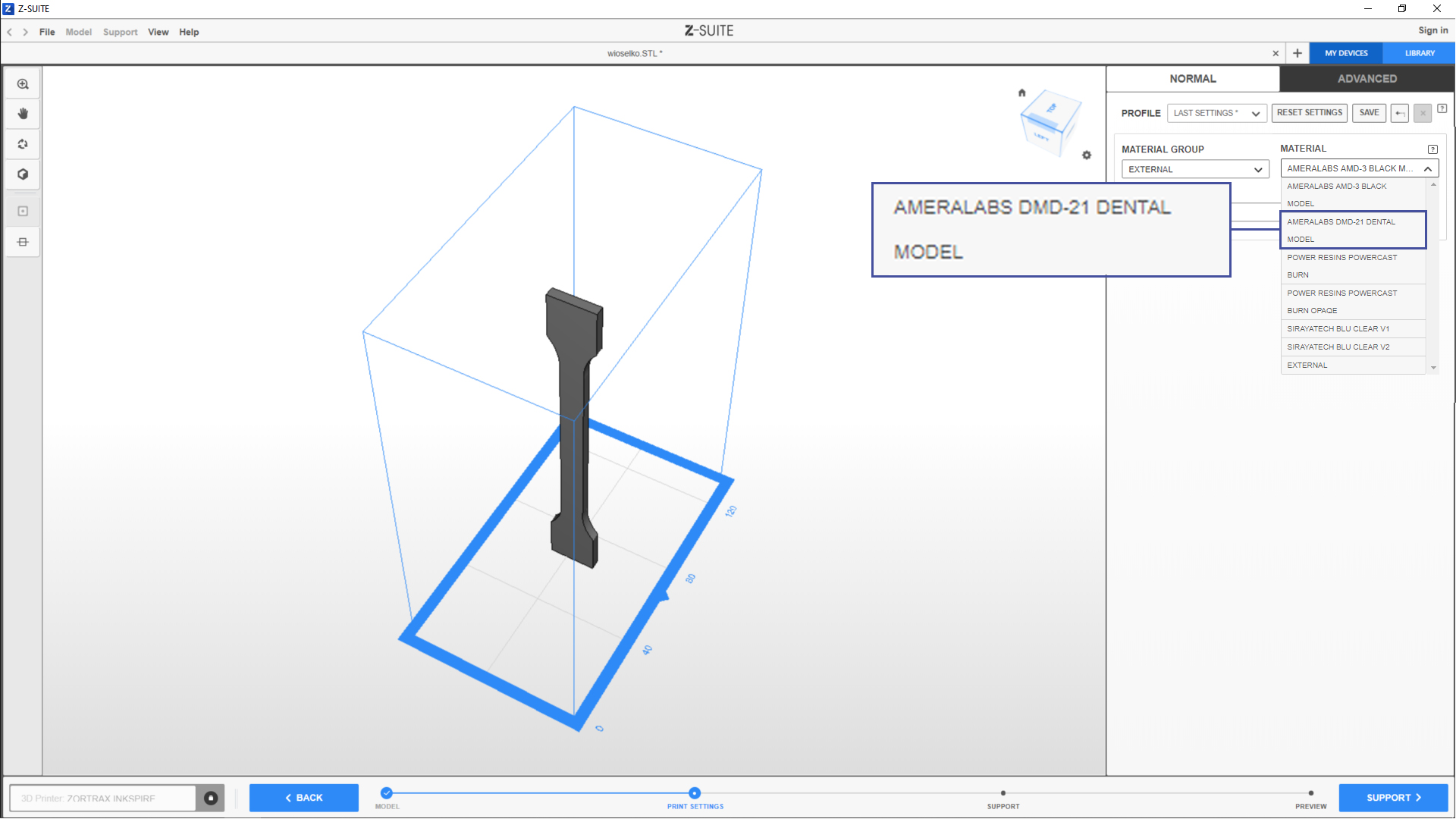

First, change the Material Group to External, and then select the AMERALABS DMD-21 DENTAL MODEL from the drop-down list.

Next, set the Layer thickness with which you are going to print your model. This parameter determines the height of each layer. Finer layers provide better surface quality but make the printing process more time-consuming.
