Platform Maintenance

Platform maintenance is necessary to keep the platform clean and in good condition. The maintenance procedures improve the printing process and make it more trouble-free. Once you carry out the maintenance work, your model will properly adhere to the platform and, at the same time, it will be easier for you to remove it once the printing process is finished. This manual provides the correct maintenance procedure.

Remember to calibrate the platform after completing platform maintenance.
1

Unplugging the Power Cable

1
2
3
4

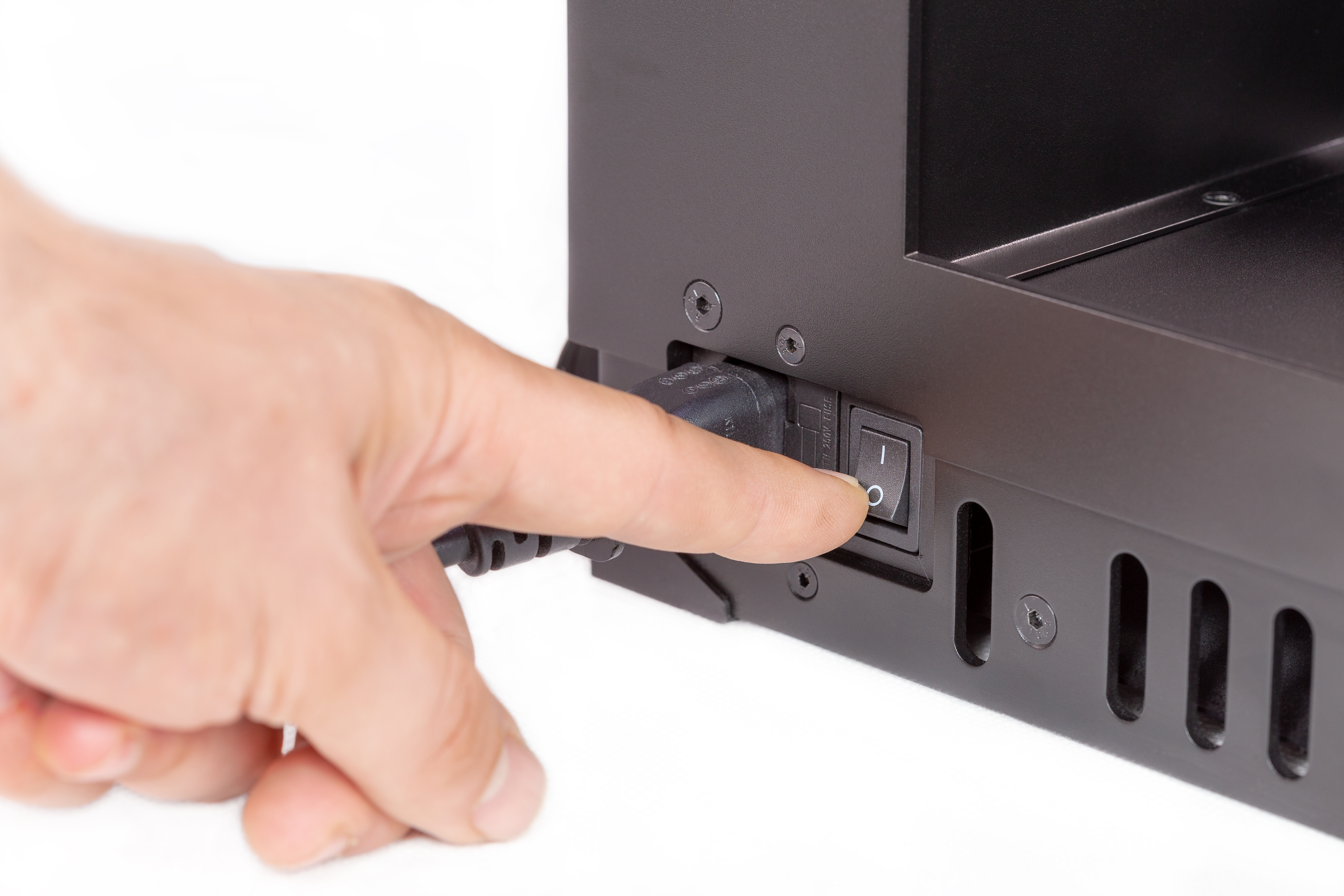

Turn off the printer and unplug the power cable.

2

Unplugging the Heatbed Cable (from the Z-axis Cover)

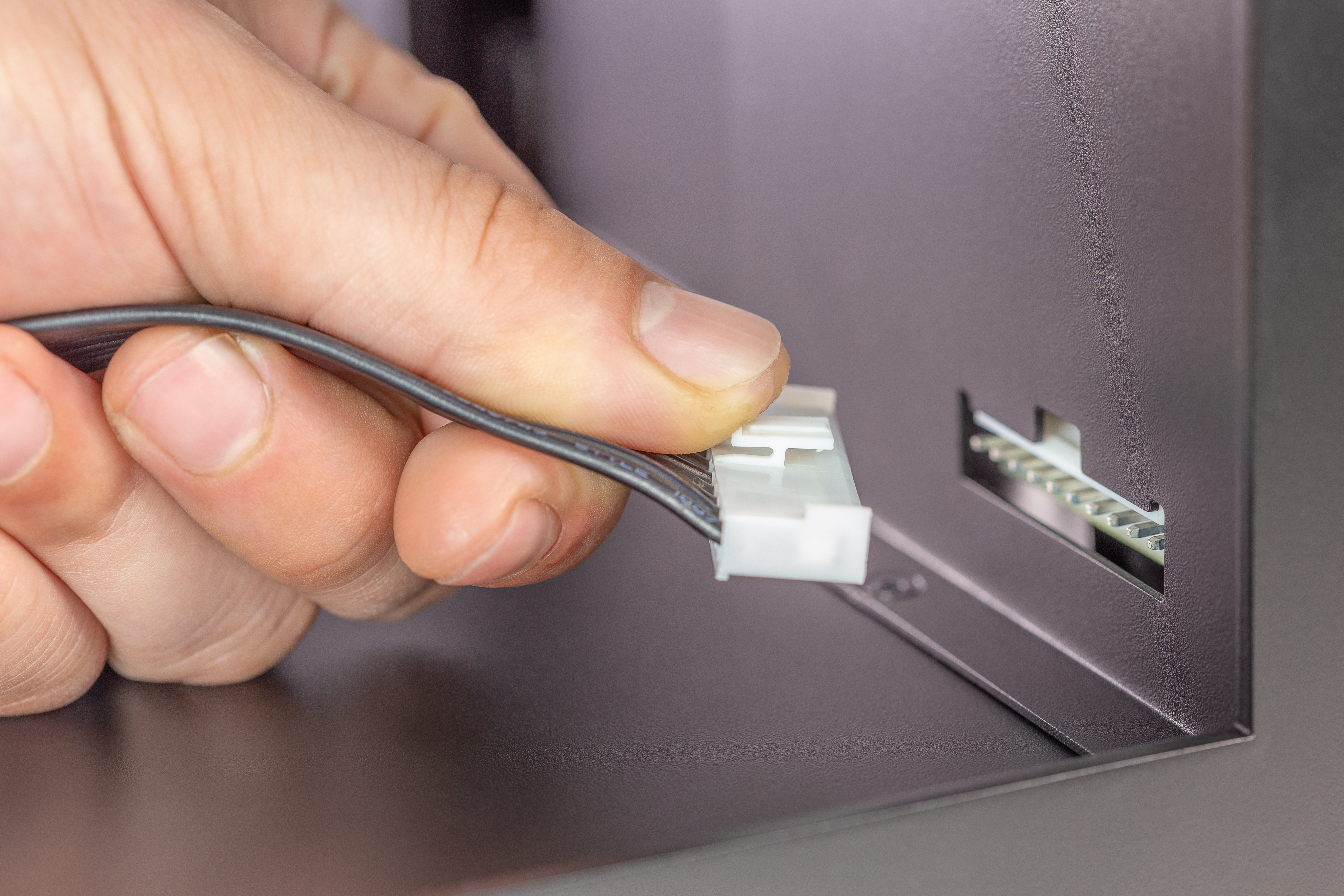

Unplug the heatbed cable from the Z-axis cover.

3

Platform Removal

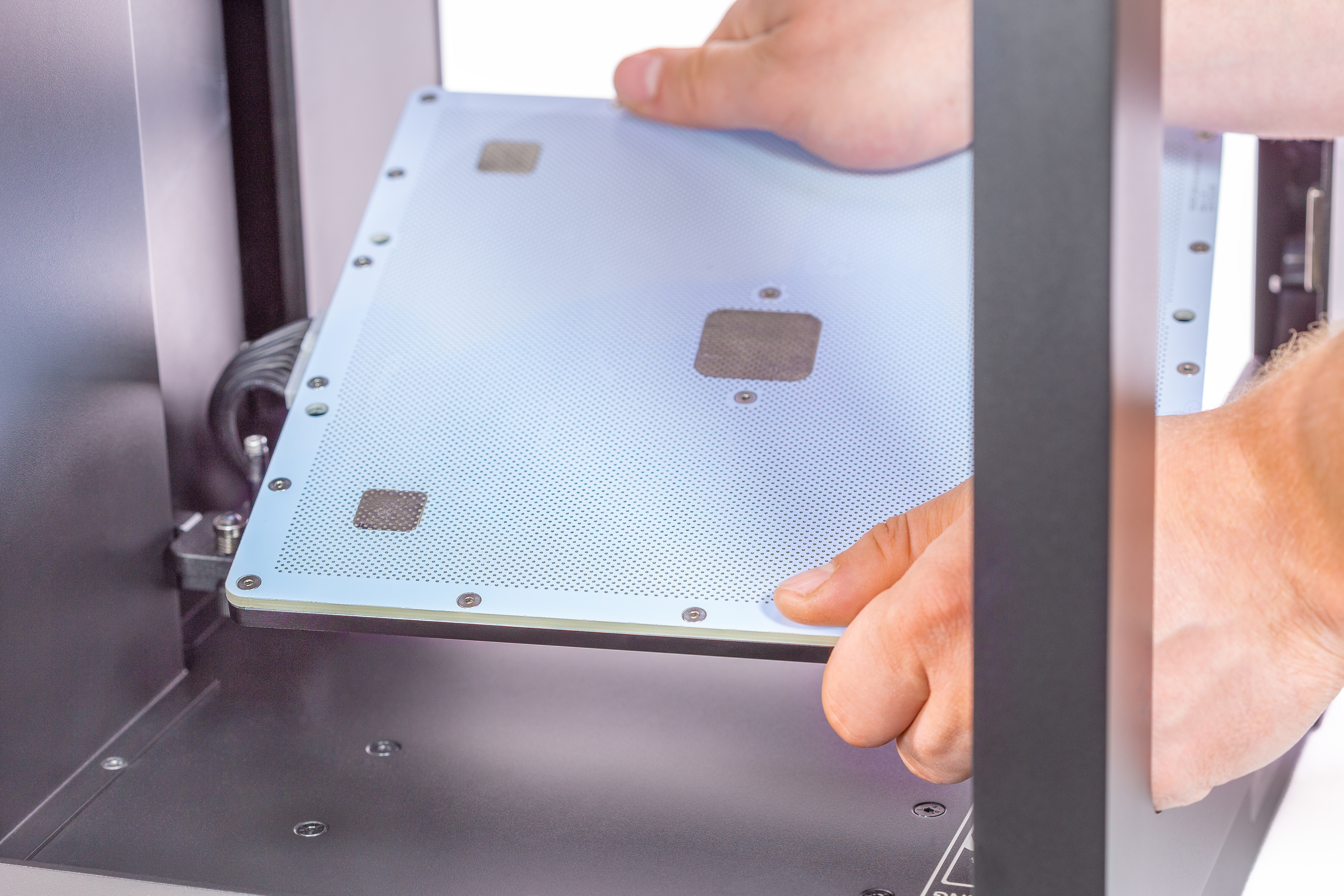

Remove the platform from the printer.

4

Cleaning the Platform

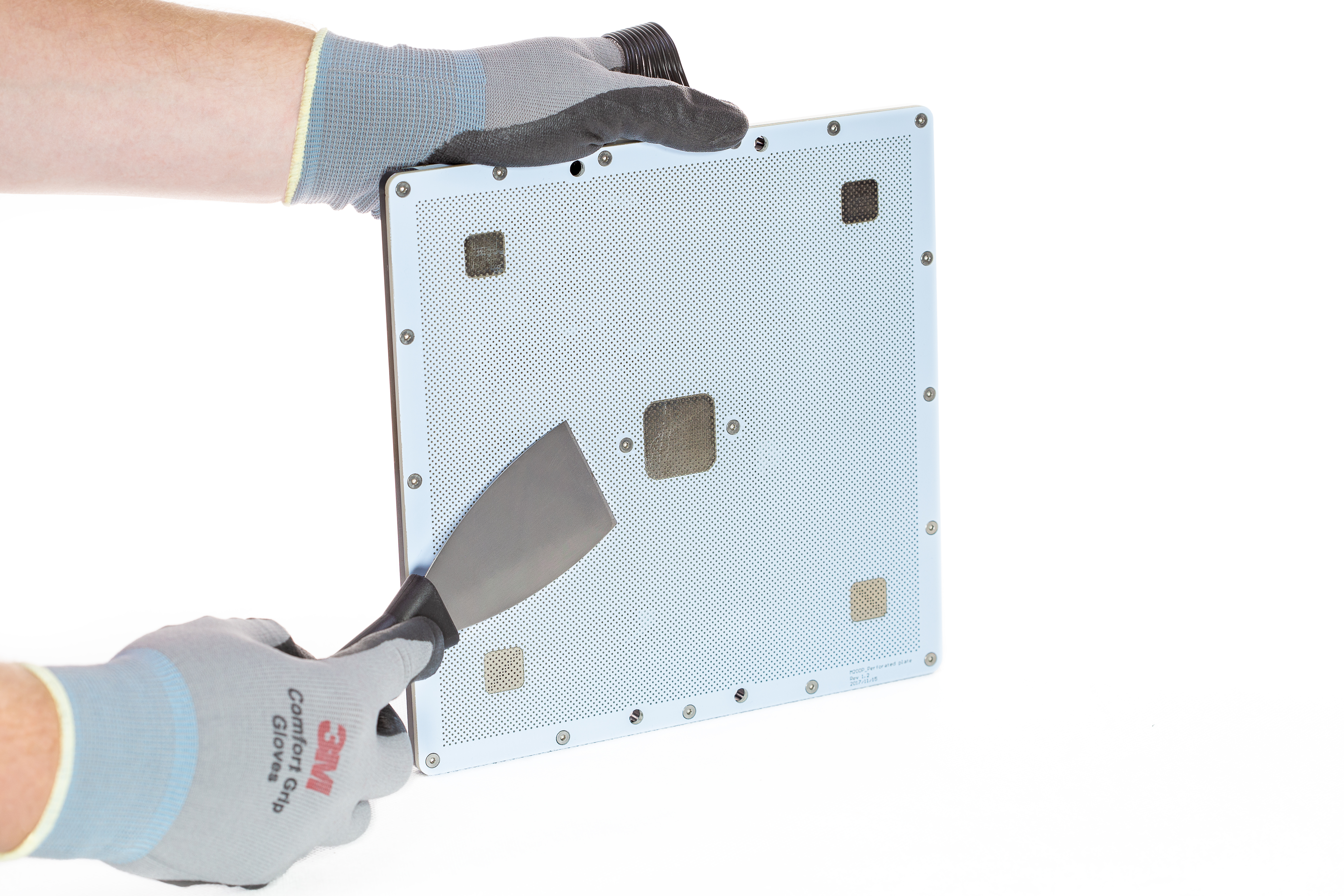

Clean the platform from material residues using a spatula.

5

Unscrewing the Perforated Plate

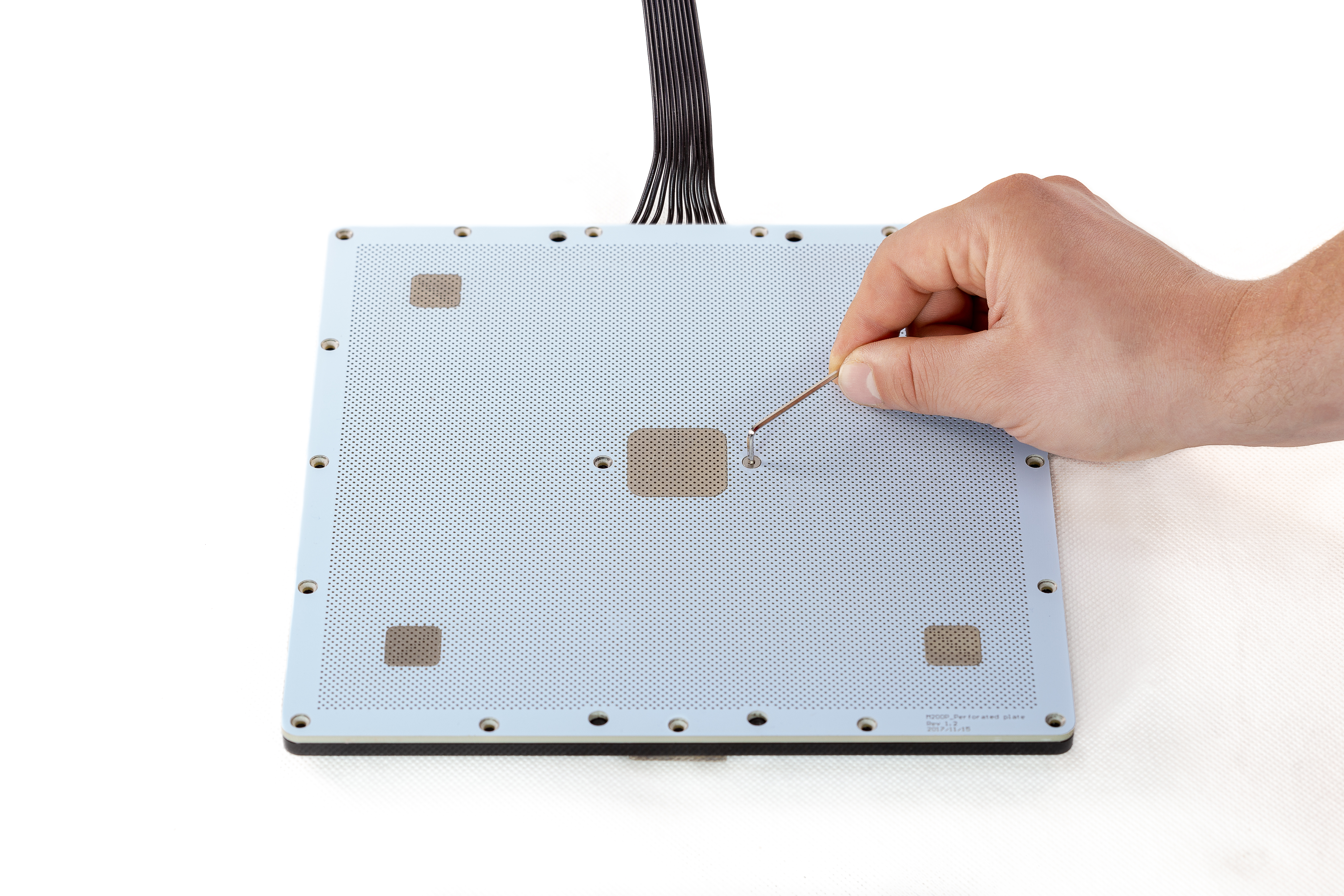

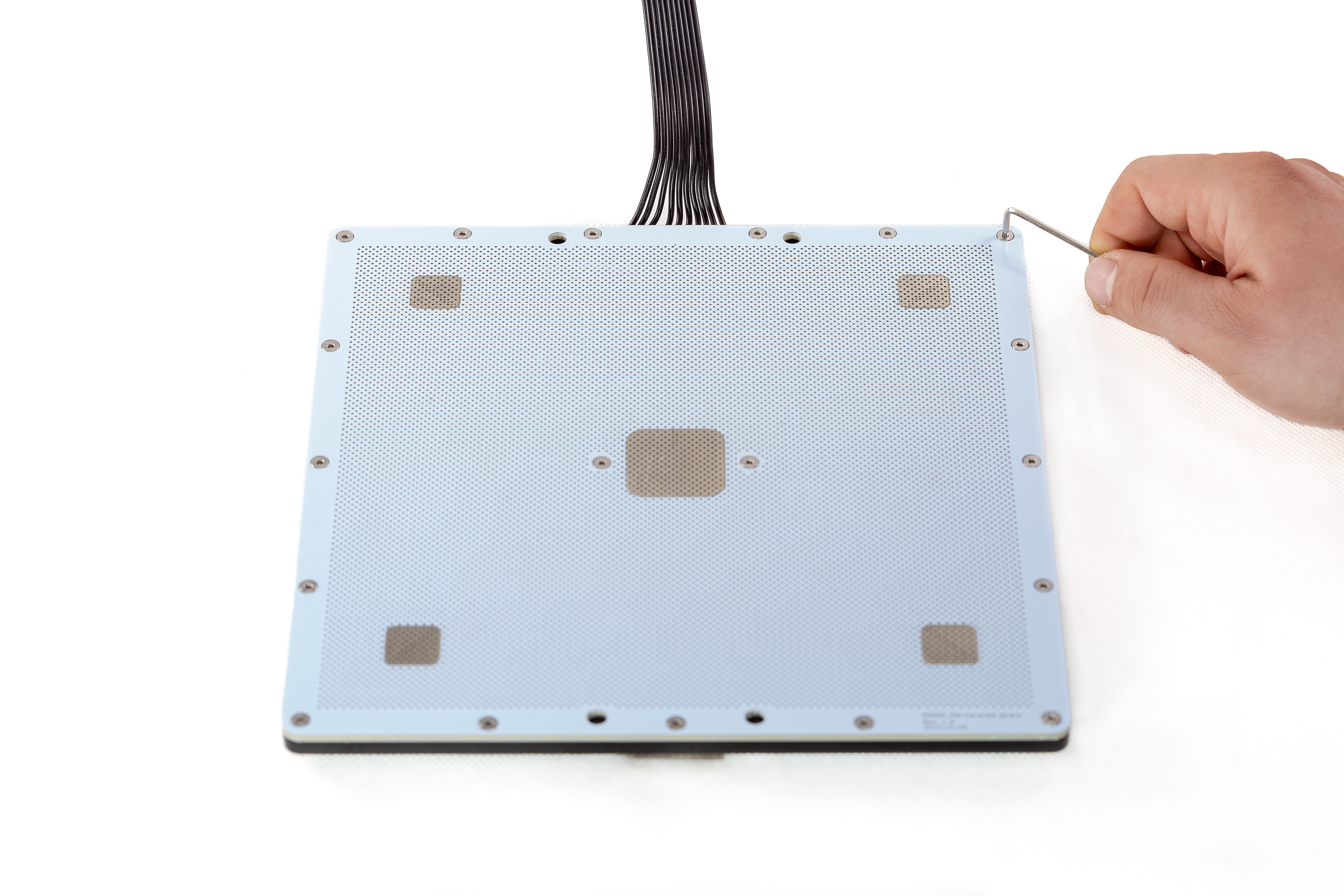

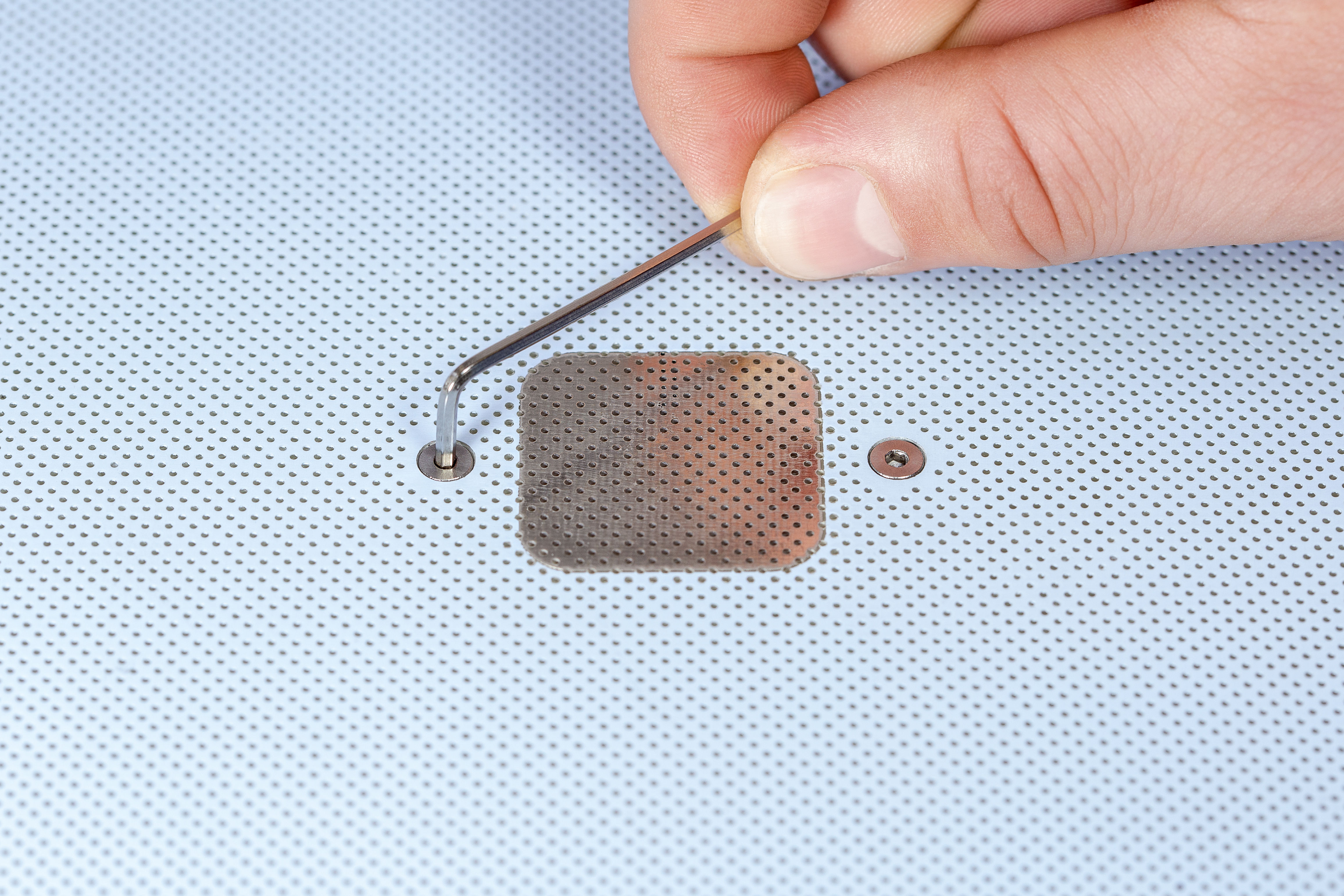

Unscrew the screws that secure the perforated plate to the heatbed. Remove the perforated plate.

6

Cleaning the Heatbed

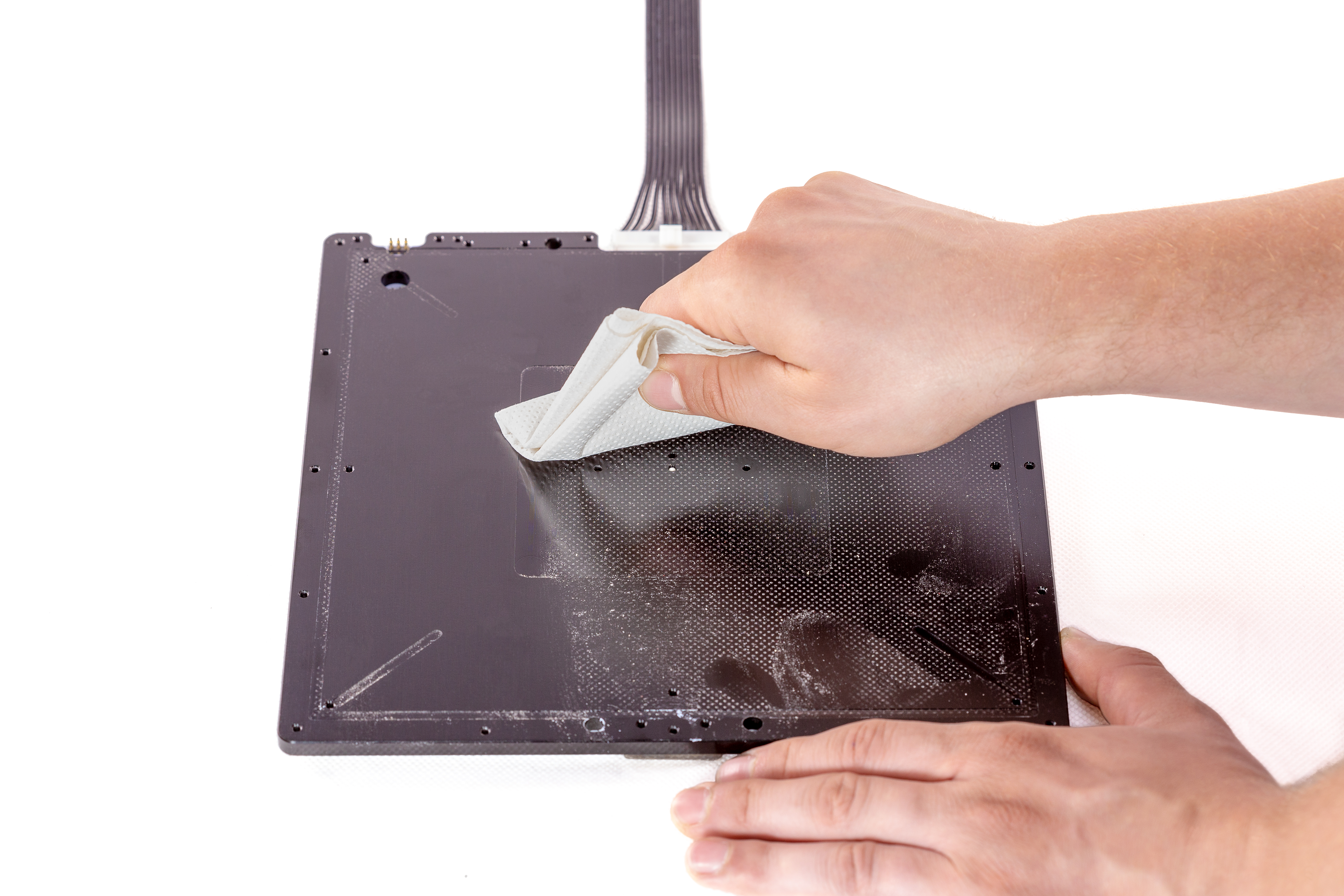

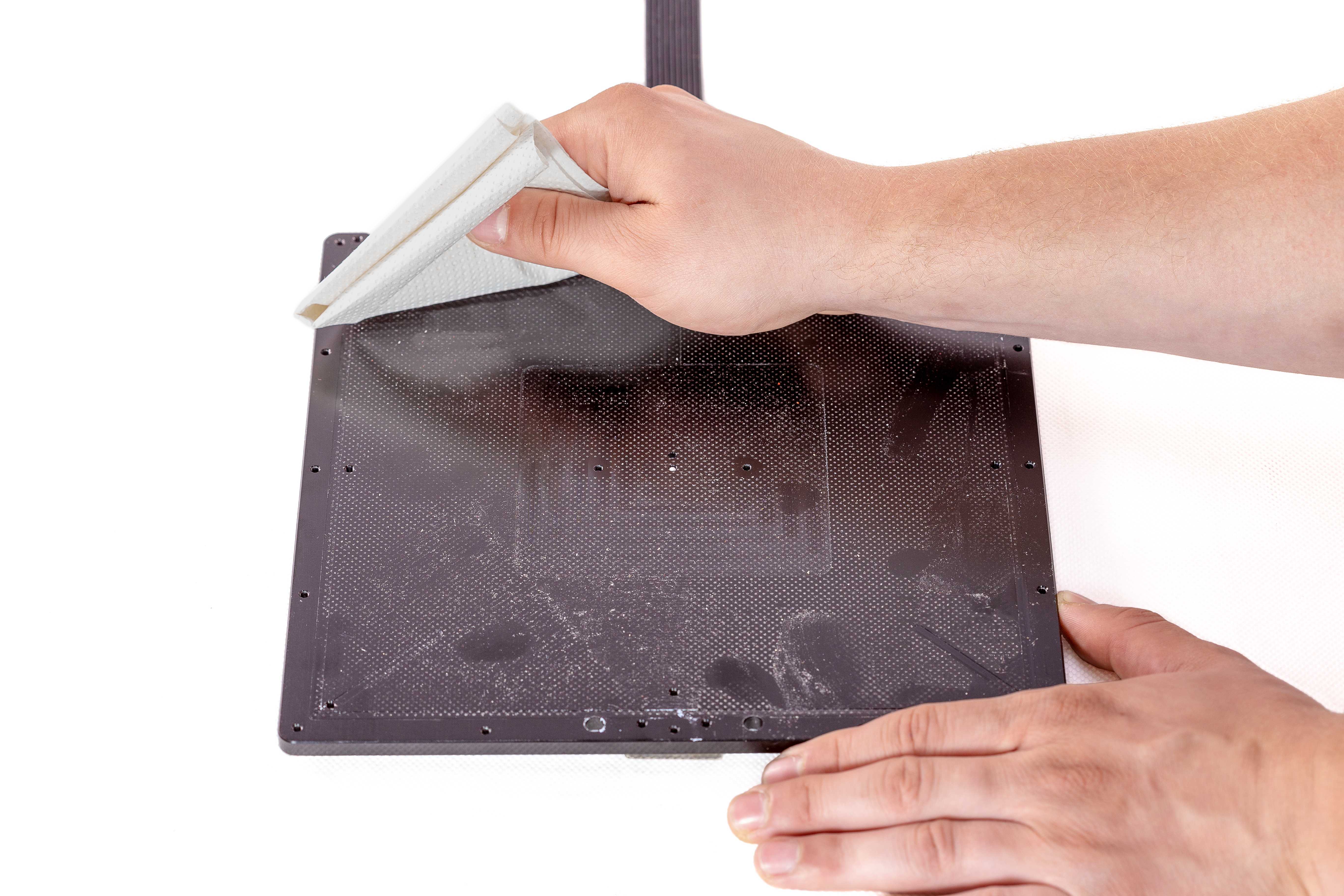

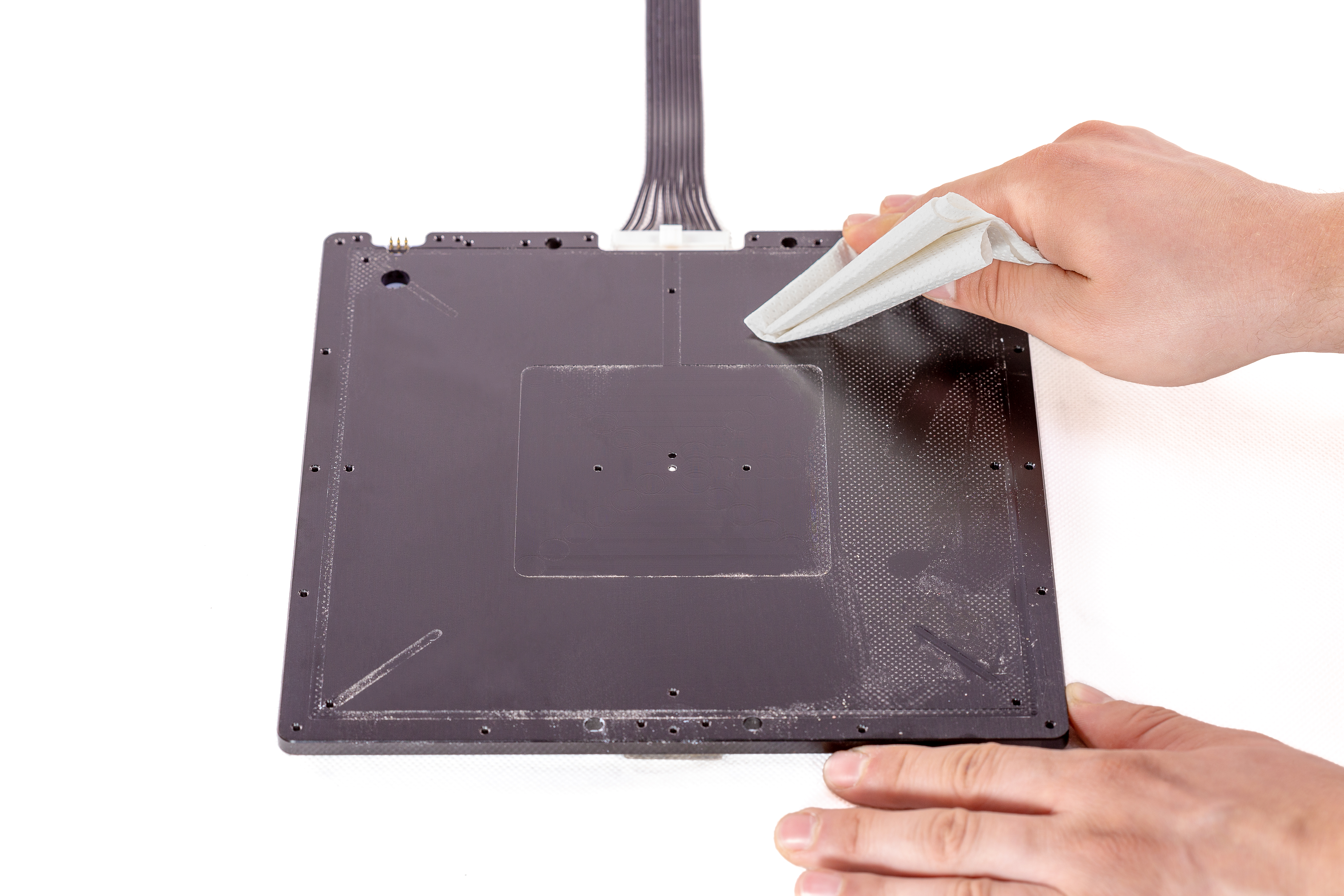

Remove material residues from the heatbed using a piece of cloth or, if it is necessary, use a spatula.

7

Cleaning the Perforated Plate with a Spatula


Turn the perforated plate over and clean it from material remains using a spatula.

8

Cleaning the Perforated Plate with Sandpaper


Turn the plate over again. Use 320-400 grit sandpaper to smooth down the surface of the plate.

9

Cleaning the Perforated Plate with Acetone

Platform-Maintenance-09-przecieranie-szmatką-z-acetonem-płyty-perforowanej-z-góry.jpg

Wipe the perforated plate with a piece of cloth damped in acetone.

10

Cleaning the Pogo Pins

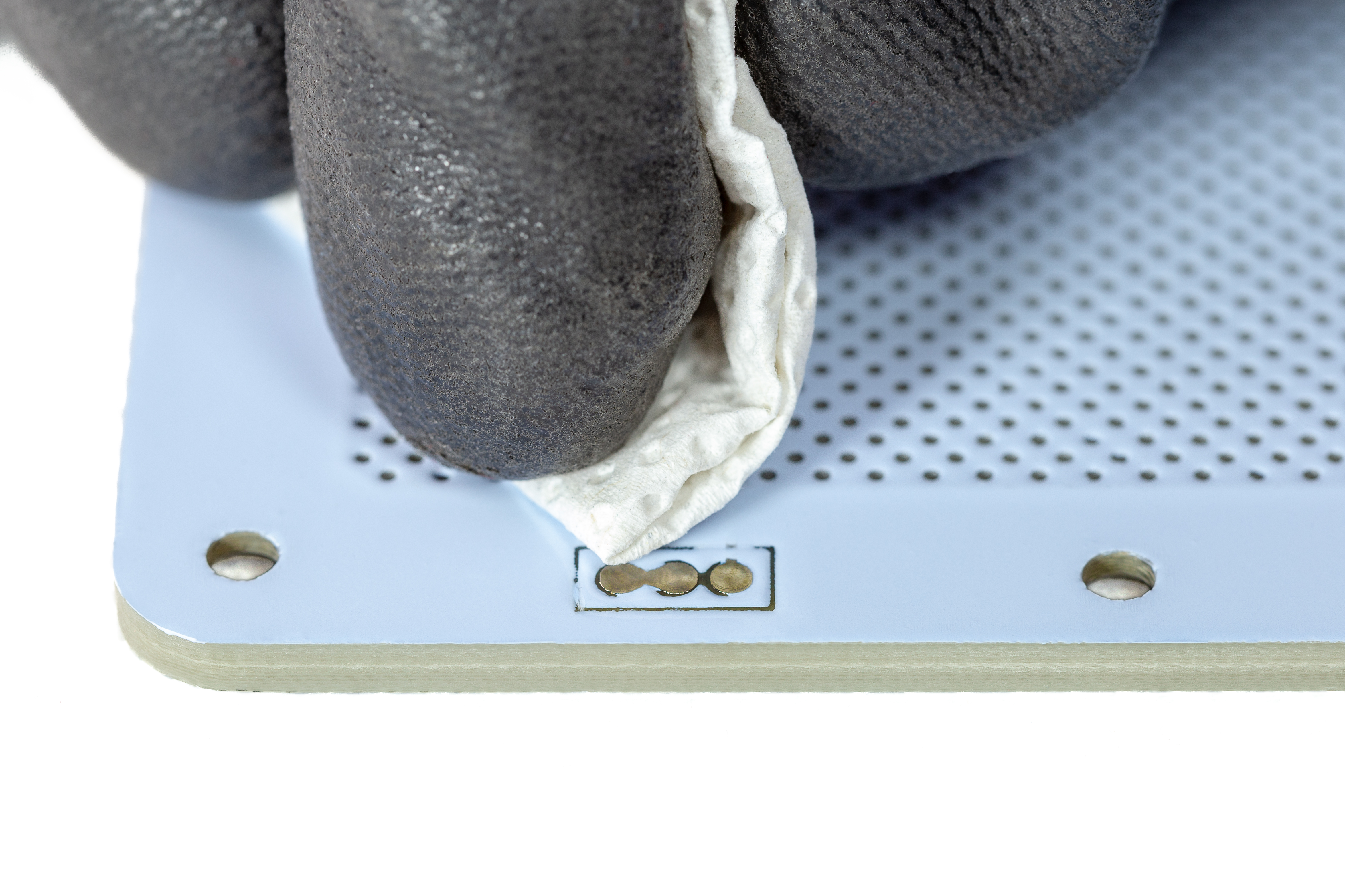

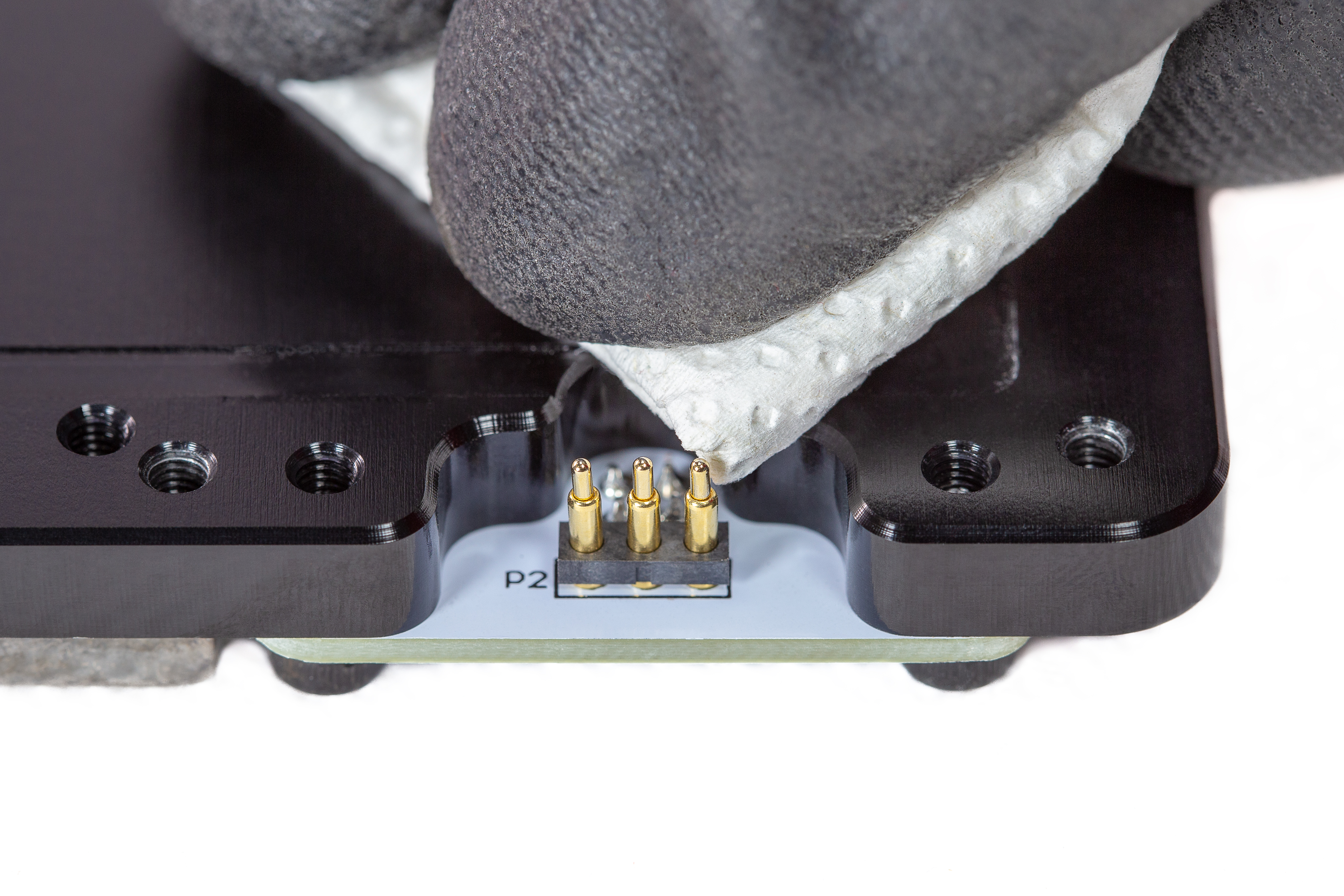

Use a piece of cloth damped in spirit or isopropyl alcohol to clean the Pogo Pins on both the heatbed and the underside of the perforated plate.

11

Securing the Perforated Plate

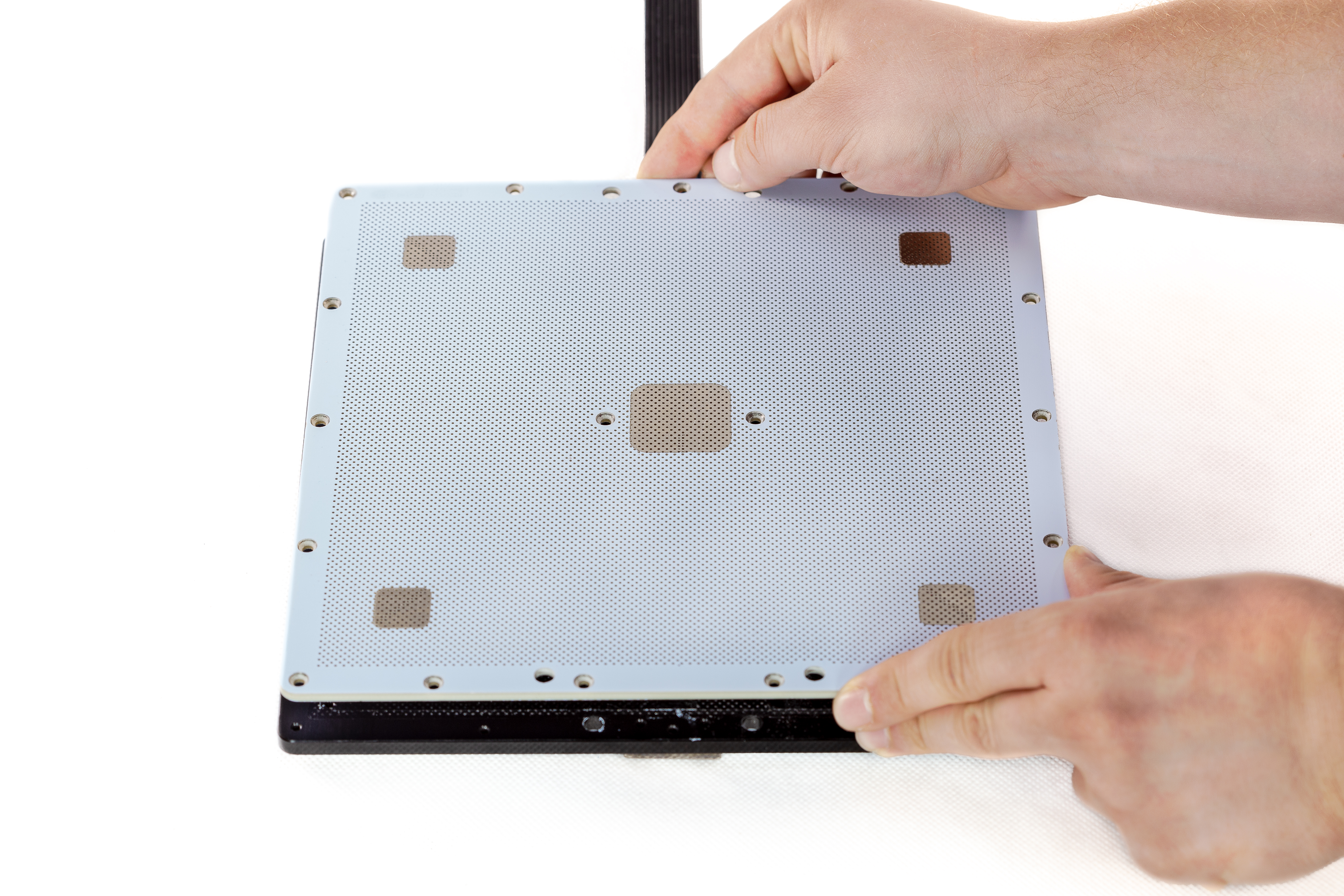

Secure the perforated plate to the heatbed with the screws.

12

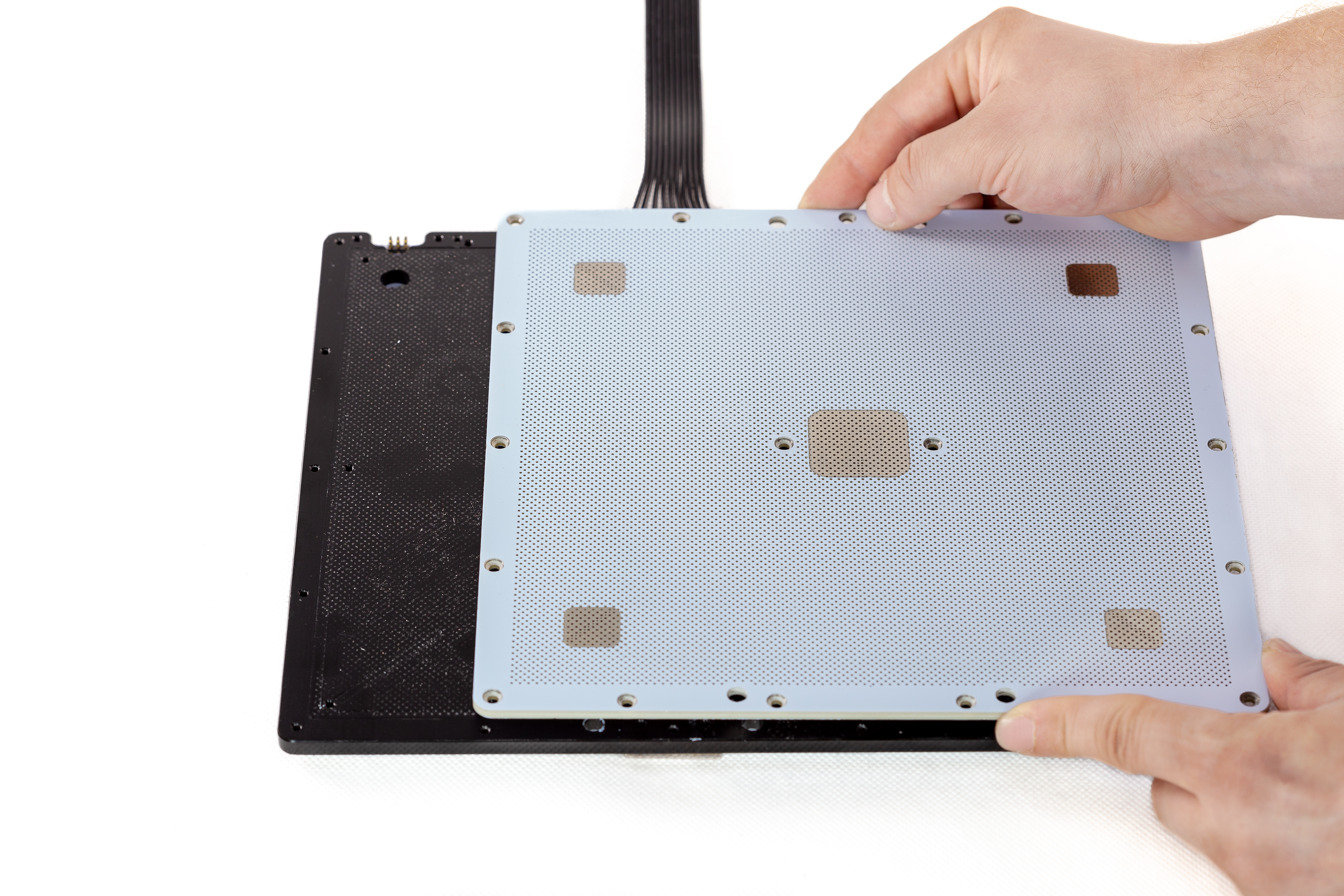

Platform Installation

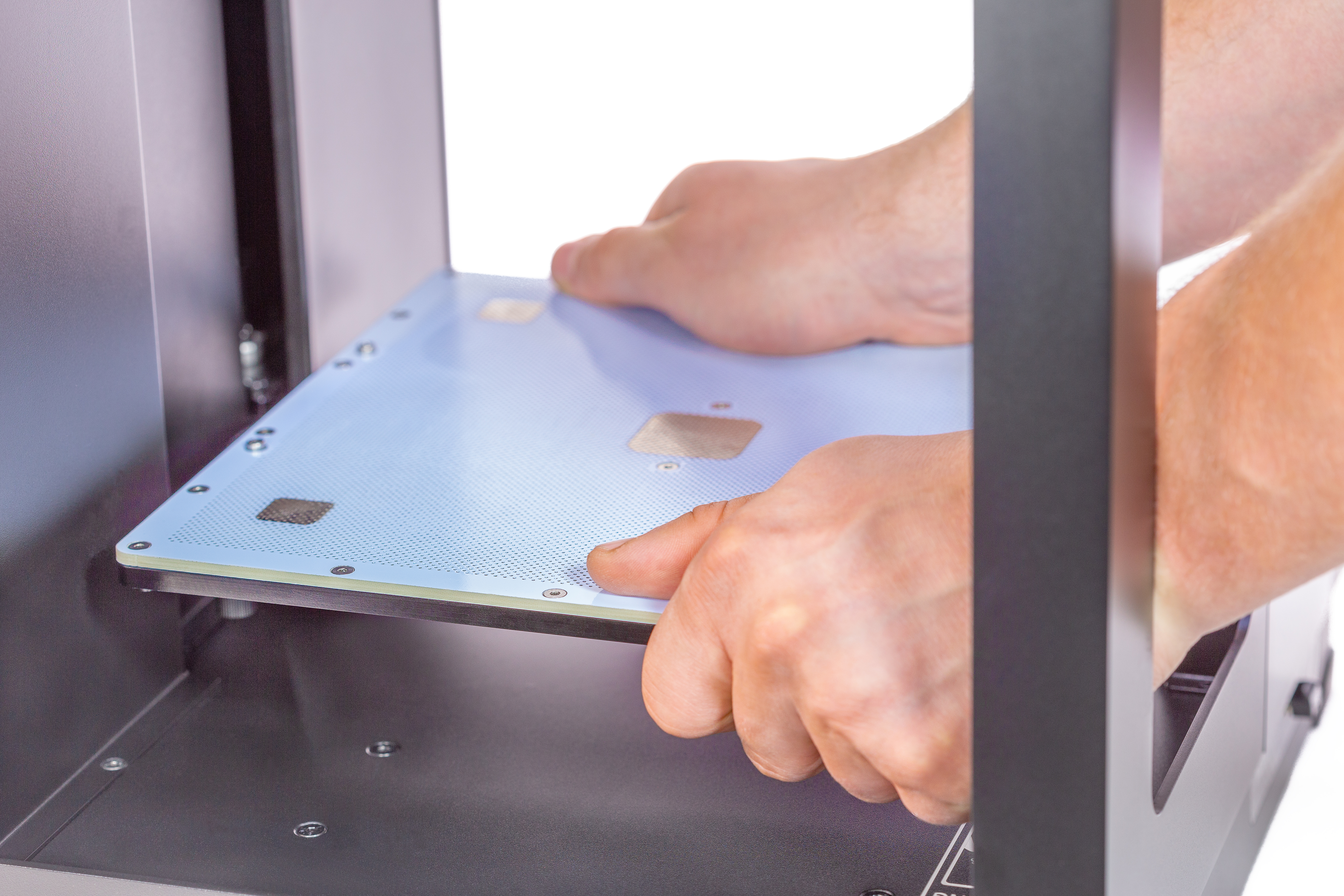

Put the platform back in the printer.

13

Plugging the Heatbed Cable (into the Z-axis Cover)

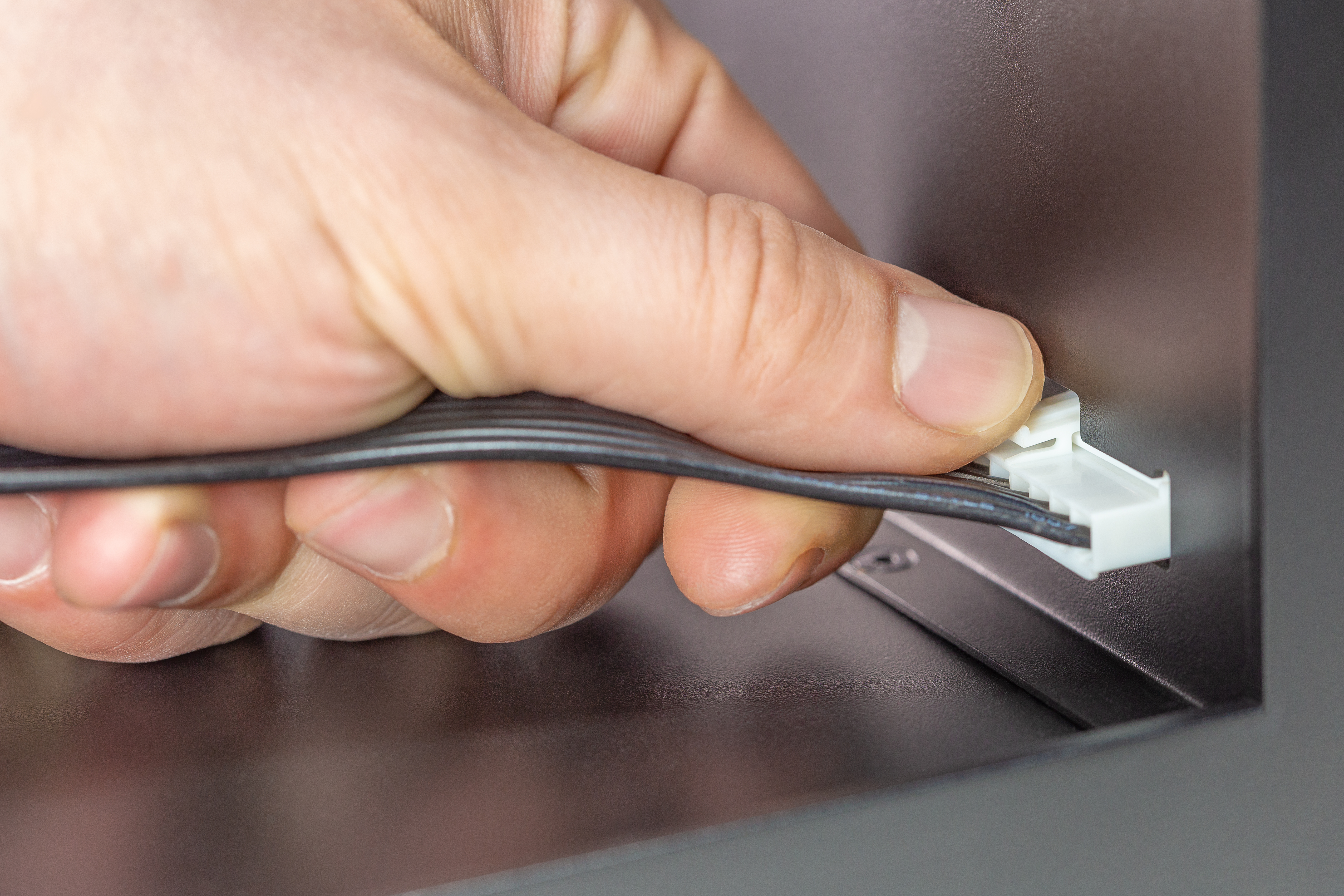

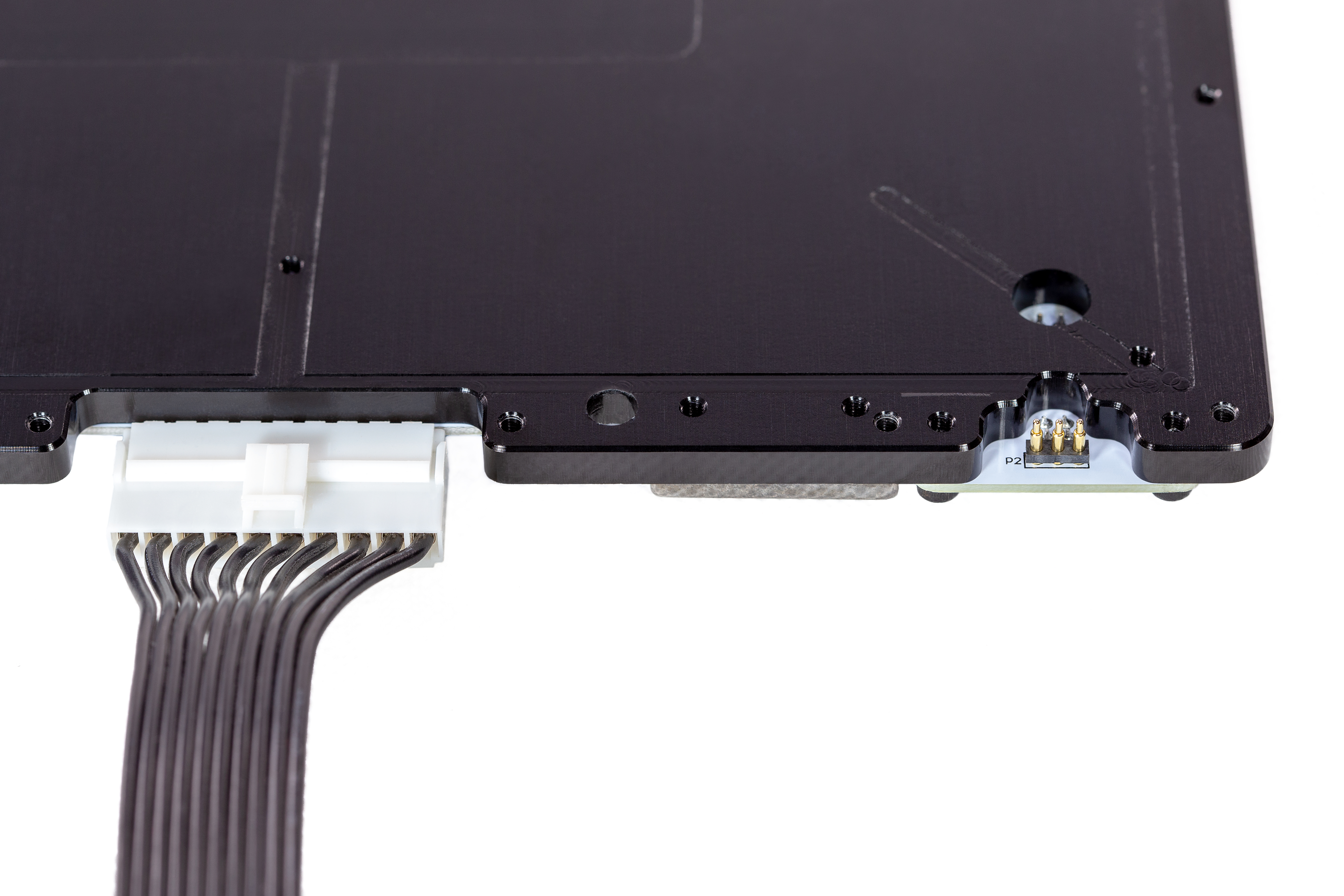

Plug the heatbed cable into the Z-axis cover.

14

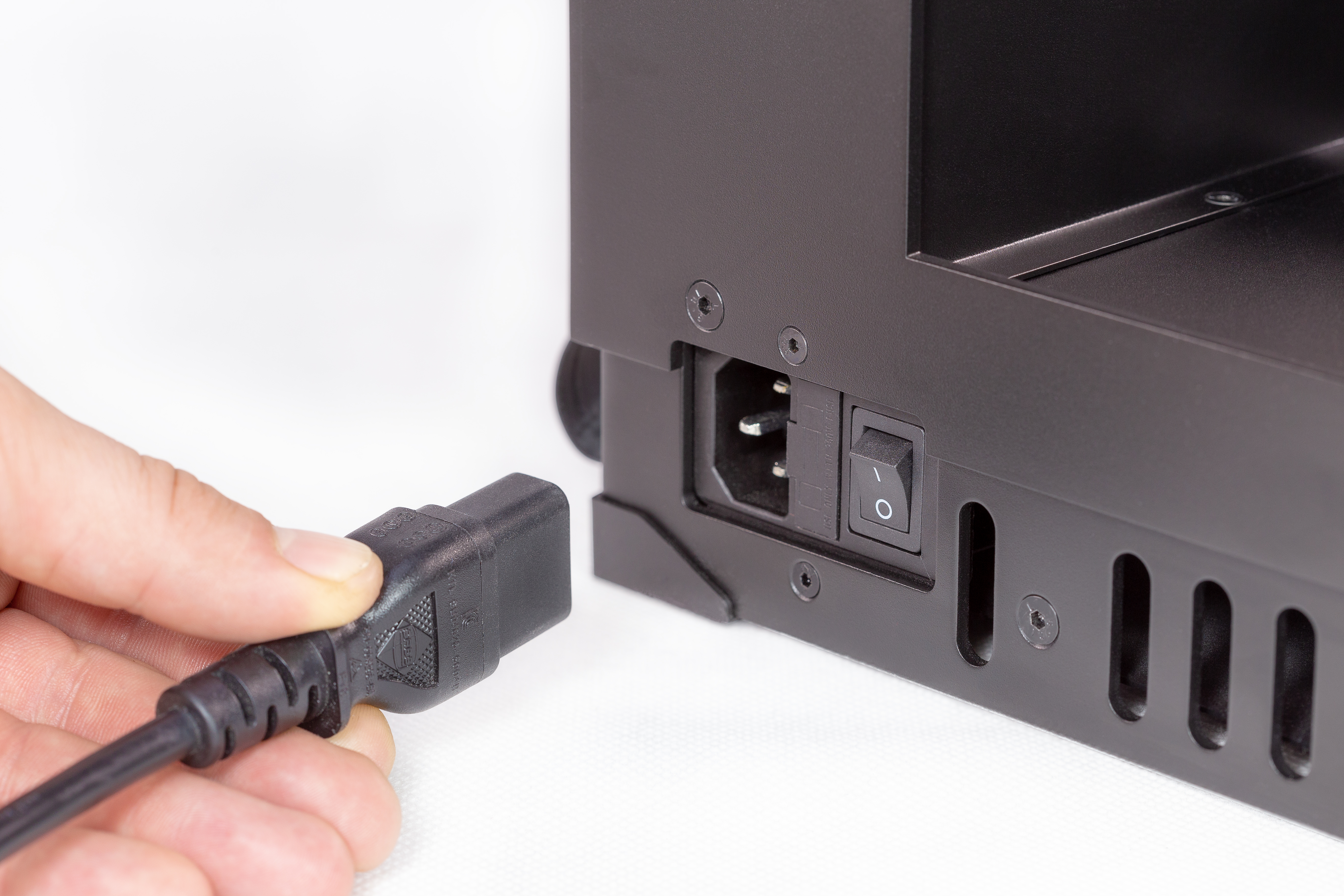

Plugging the Power Cable

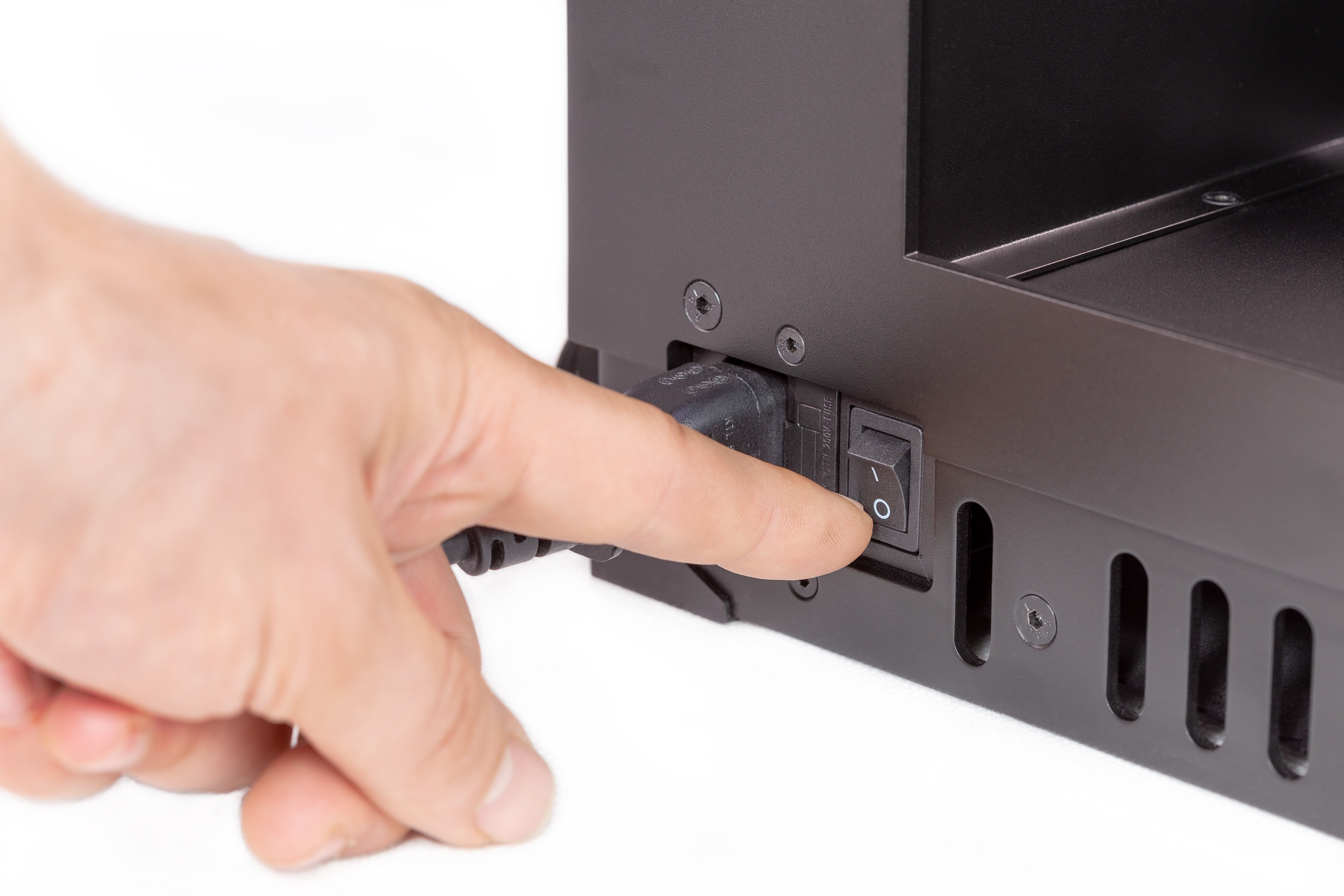

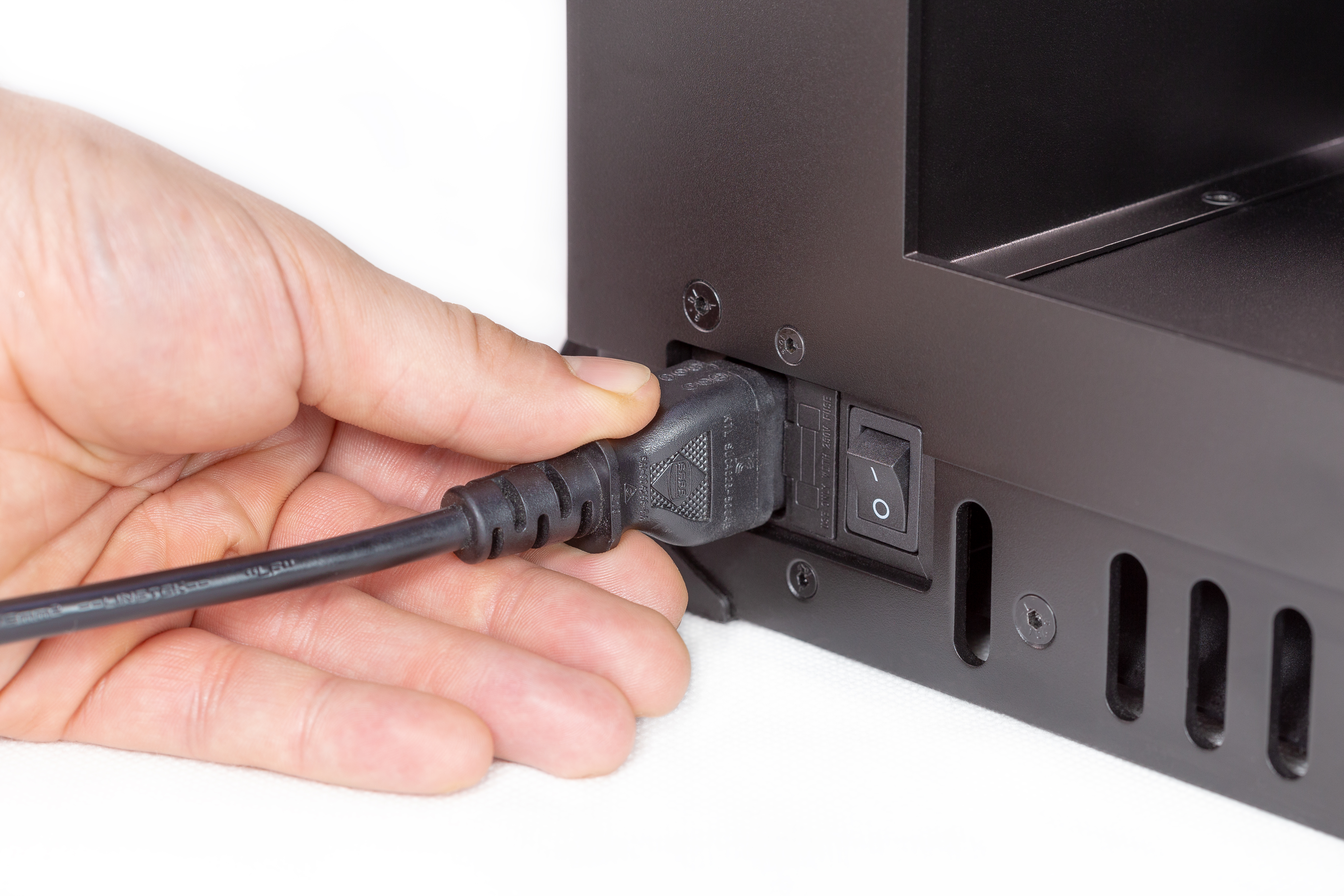

Plug in the power cable and turn on the printer.

15

Applying Z-ABS Juice

Use a piece of cloth or paper and apply a thin layer of Z-ABS juice onto the heated platform.

Preparing Z-ABS Juice

16

Platform Calibration

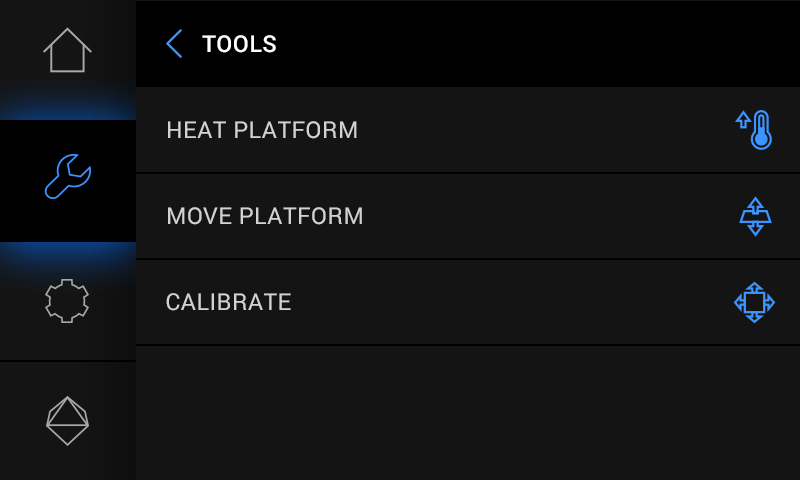

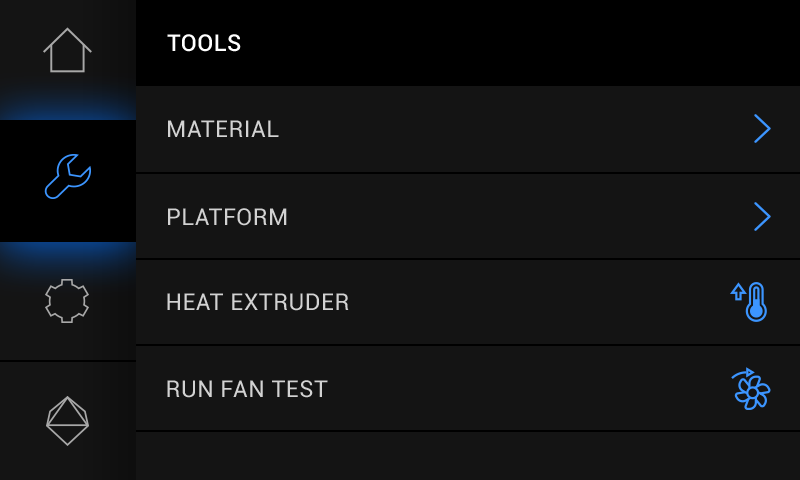

Open the Tools menu, and select Platform and Calibrate.

Follow the instructions displayed on the screen.

In order to correct the difference in values between the center and the side calibration points, you should tighten/loosen the two platform screws placed next to the center point. If the center point value is 0.2 and one of the side points value is -0.2 (the difference equals or exceeds 0.4), you should tighten the screws, whereas you should loosen them if the center point value is -0.2 and one of the side points value is 0.2.
