Components

1

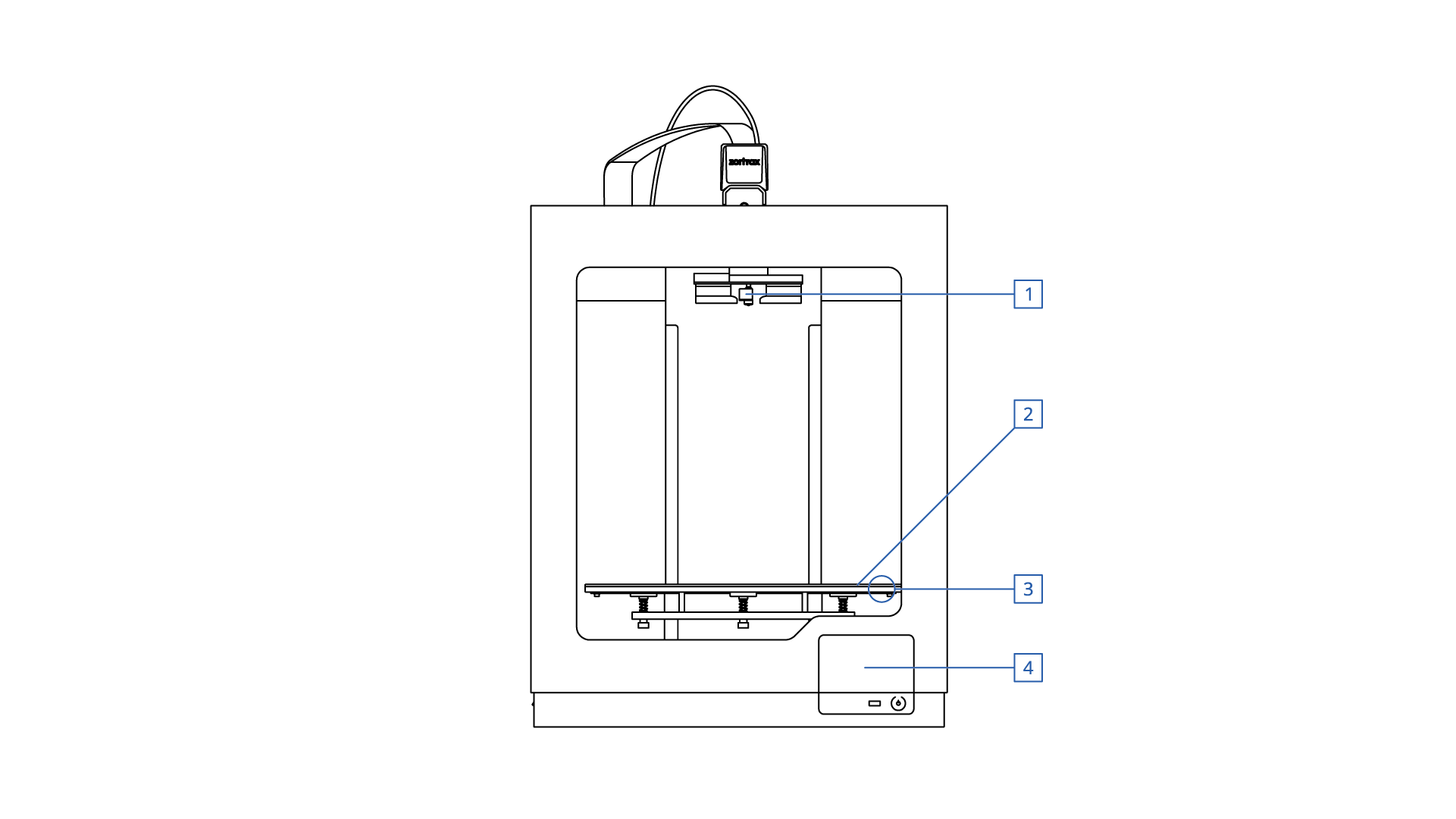

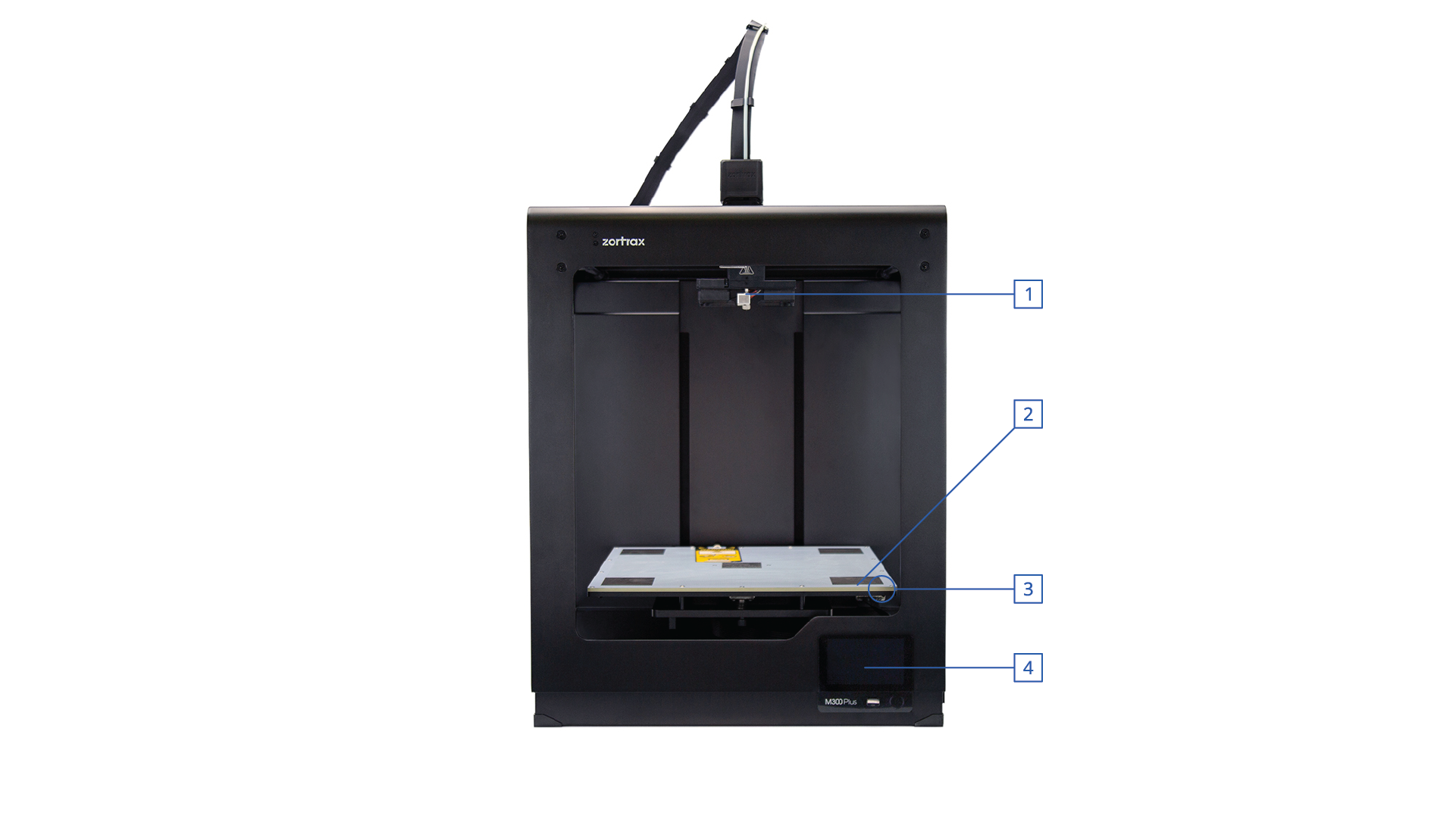

Front View

1
2
  • Hotend
  • Perforated Plate
  • Platform
  • Touchscreen
2

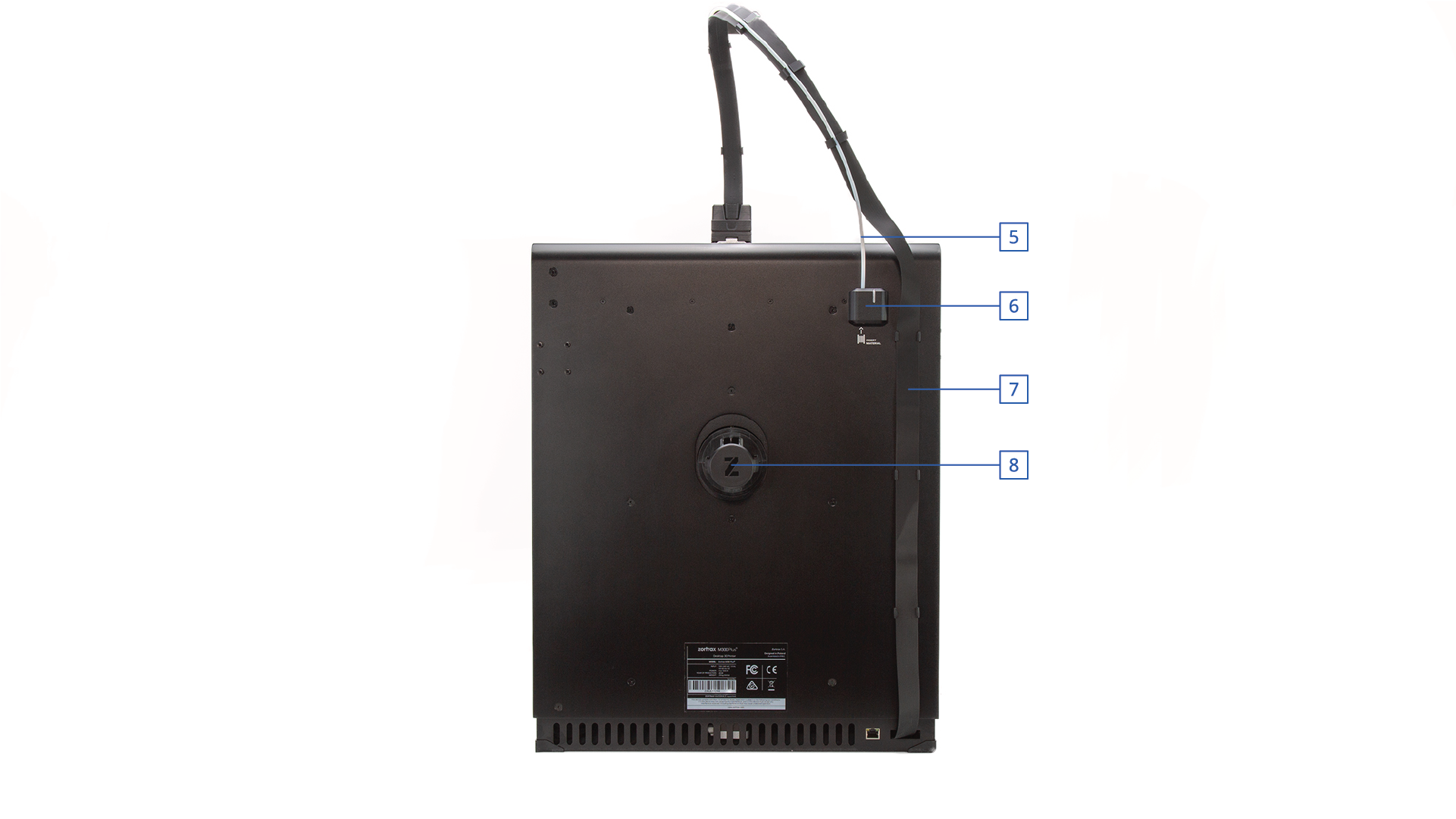

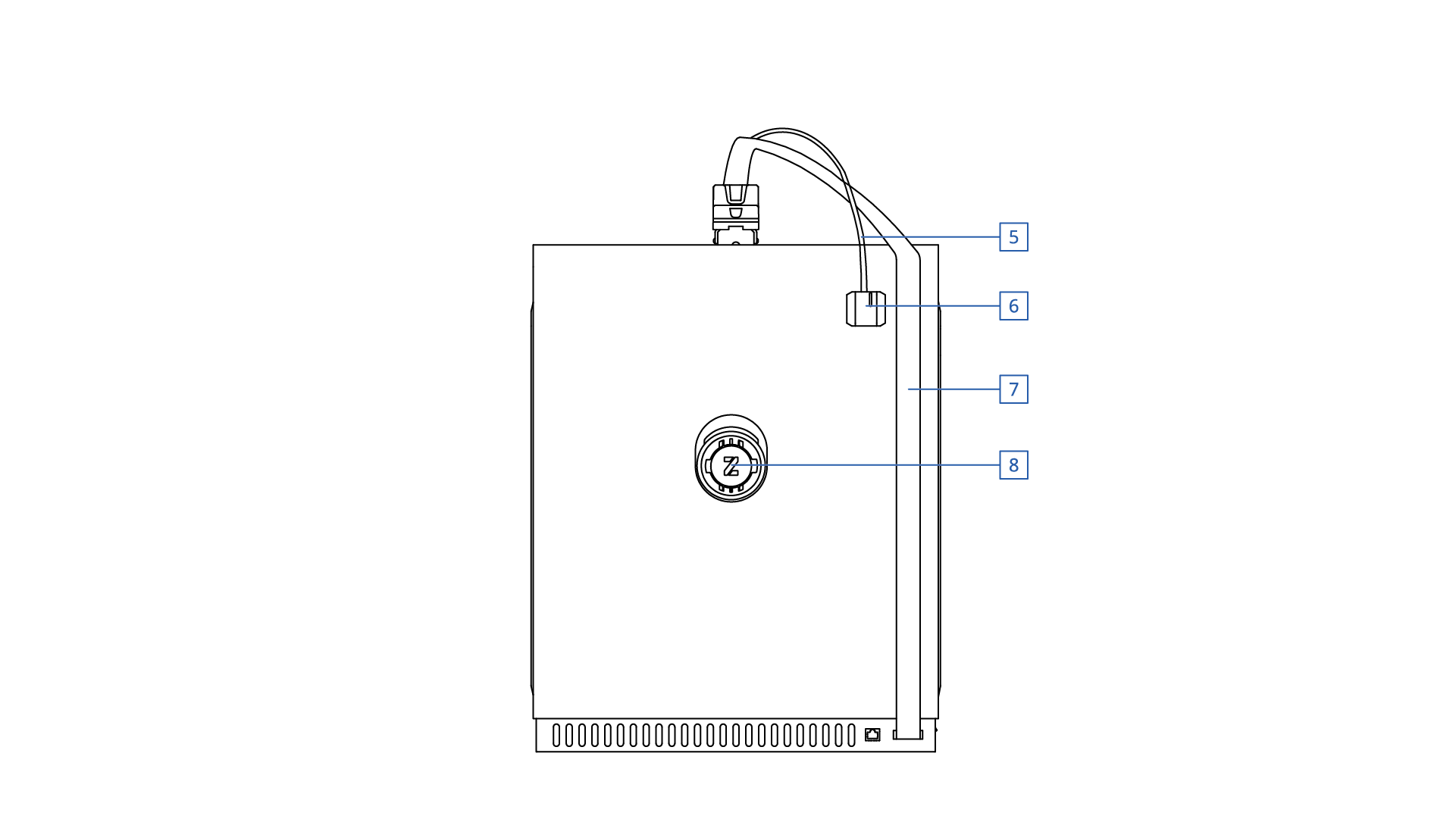

Back View

  • Material Guide
  • Material Endstop
  • Extruder Cable
  • Spool Holder
3

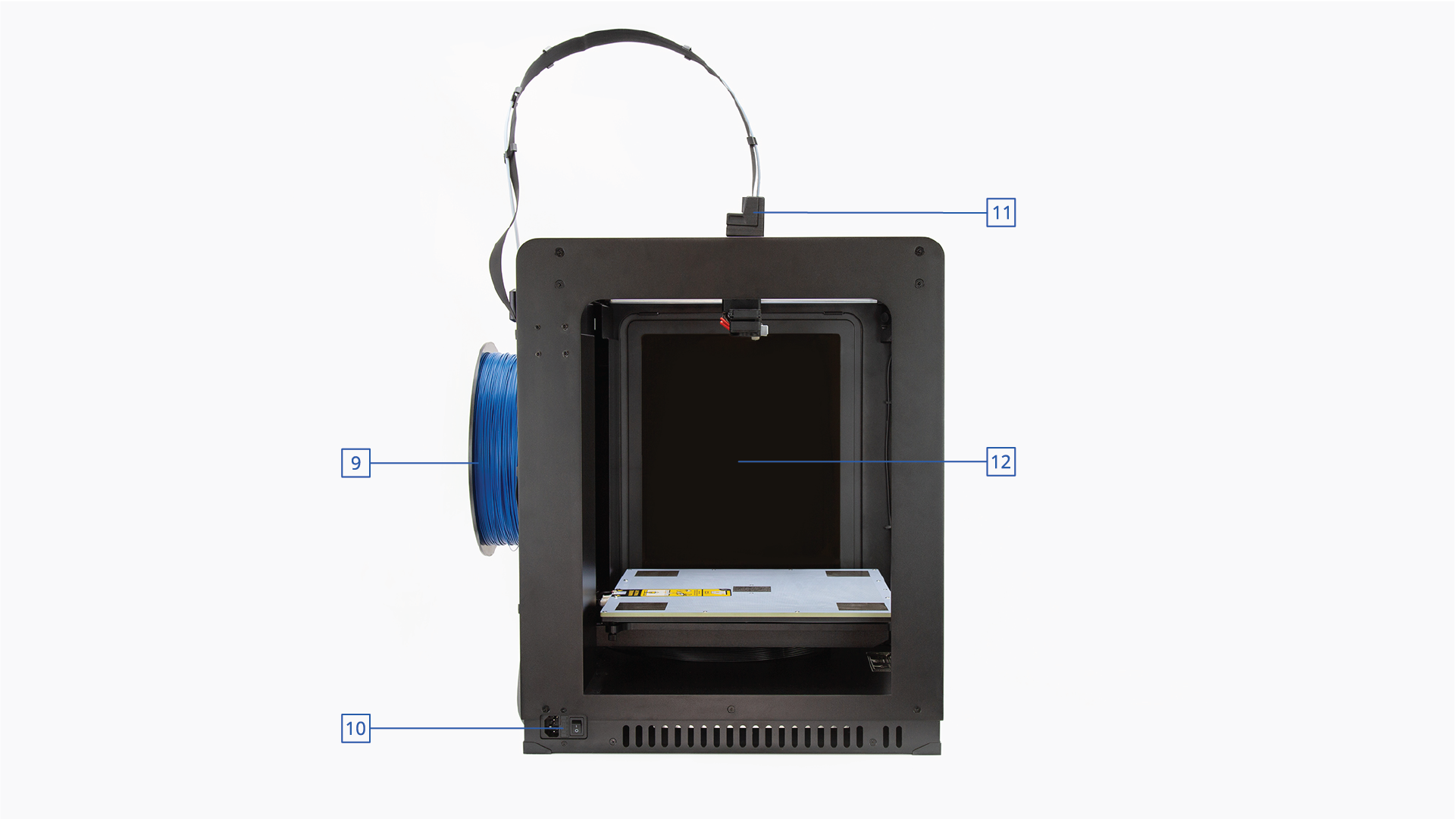

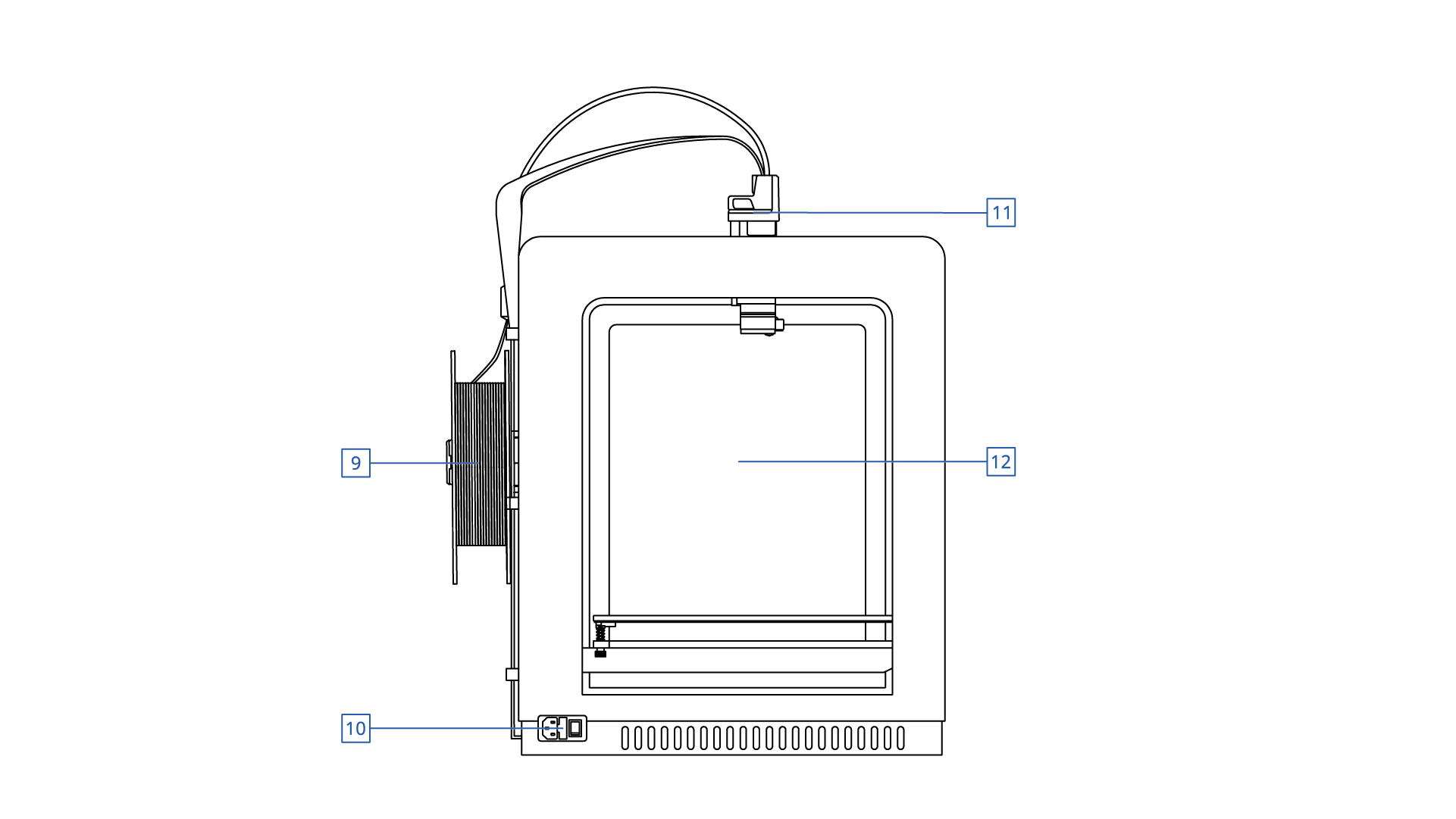

Left-Side View

  • Material Spool
  • Power Connector and Switch
  • Extruder
  • Side Cover
