Components

1

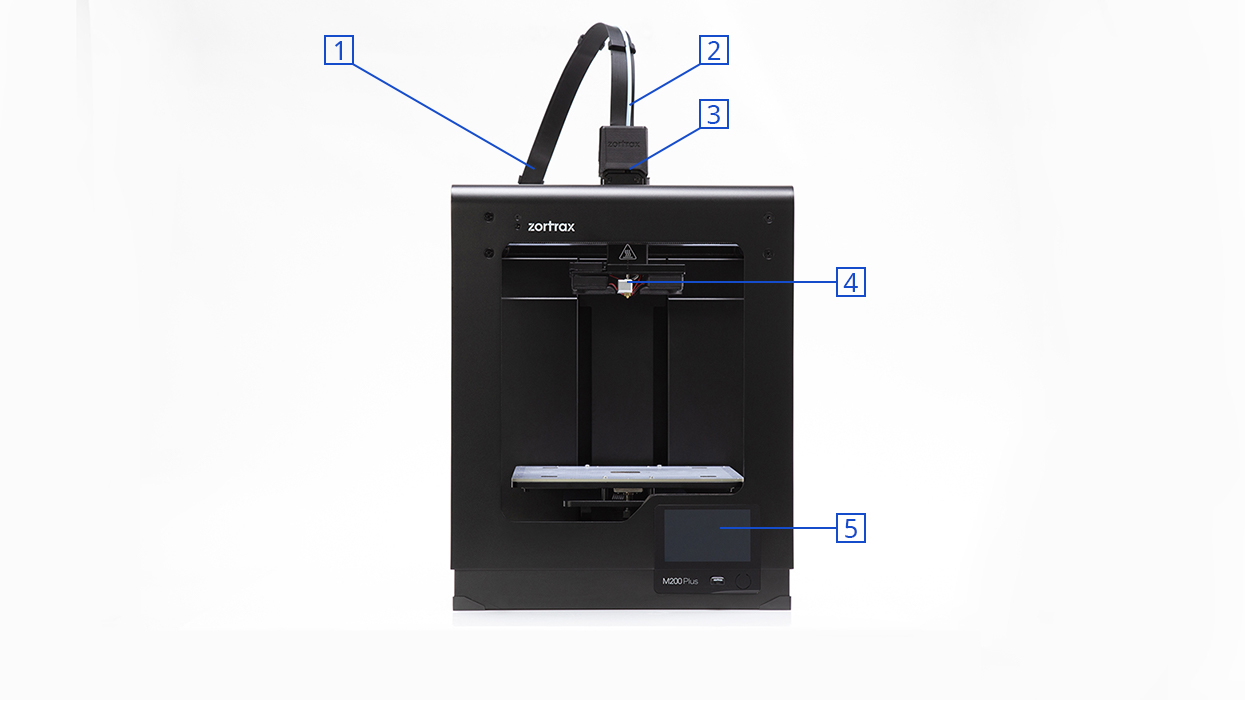

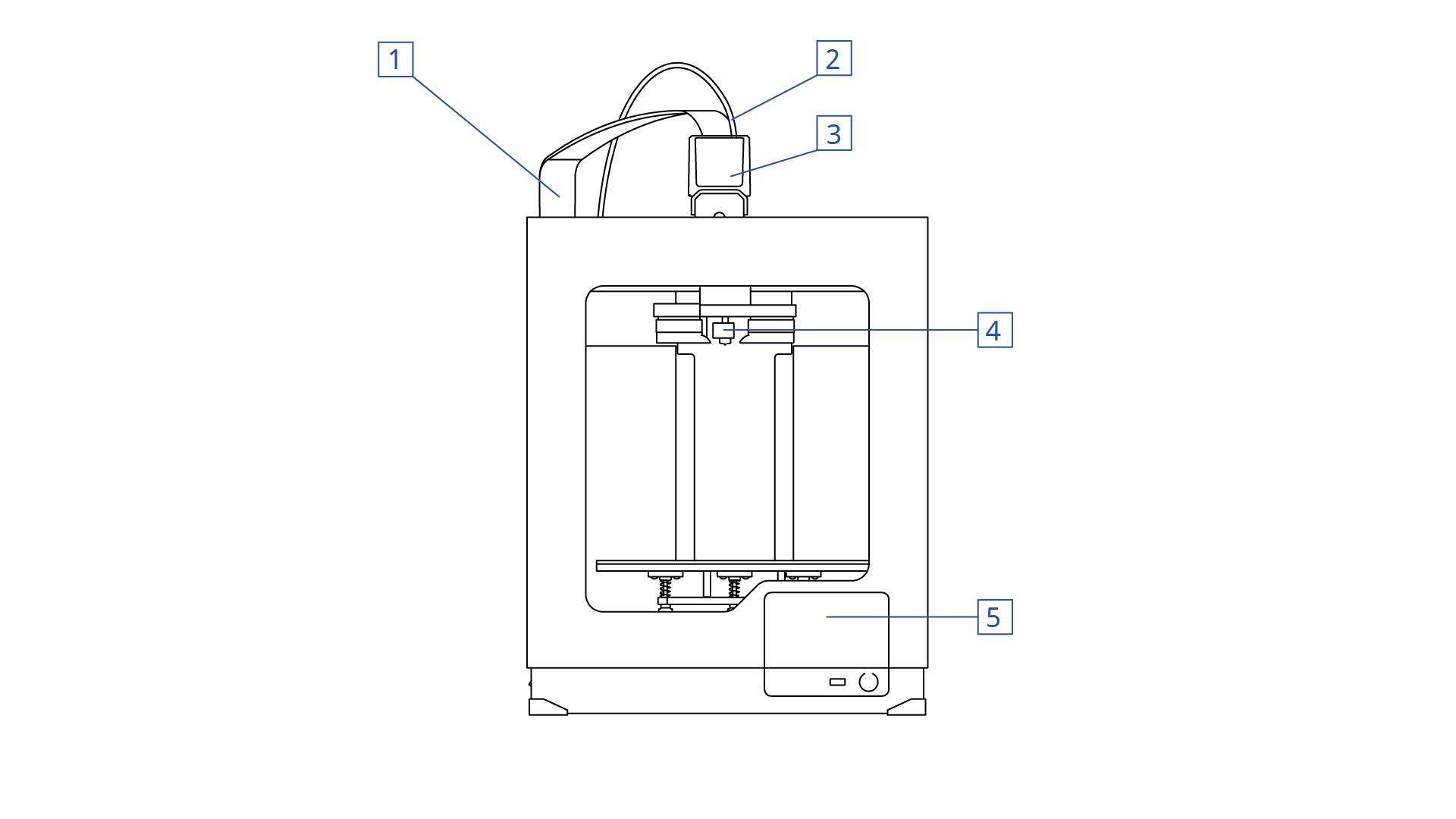

Front View

1
2
  • Extruder Cable
  • Material Guide
  • Extruder
  • Hotend
  • Touchscreen
2

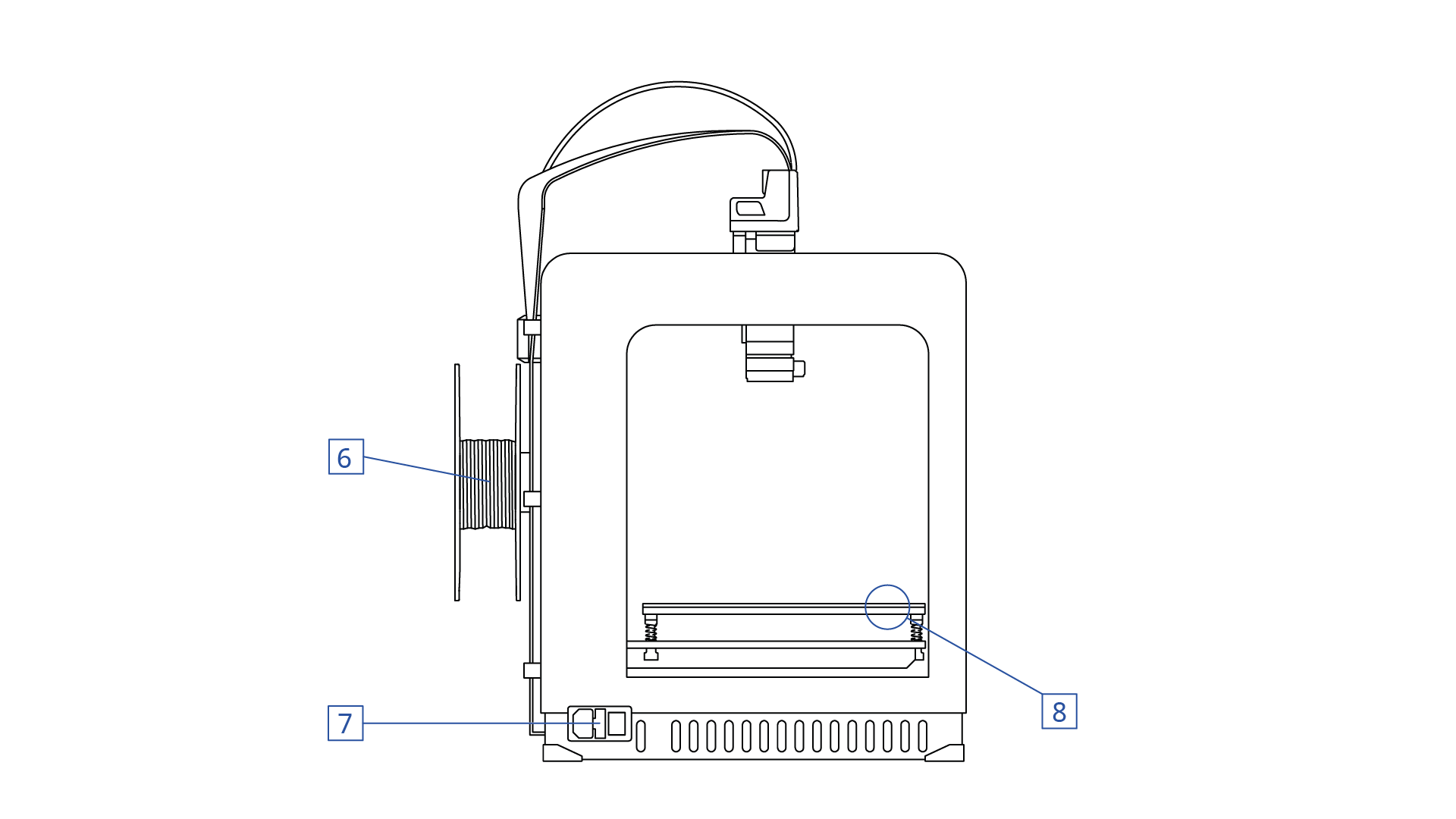

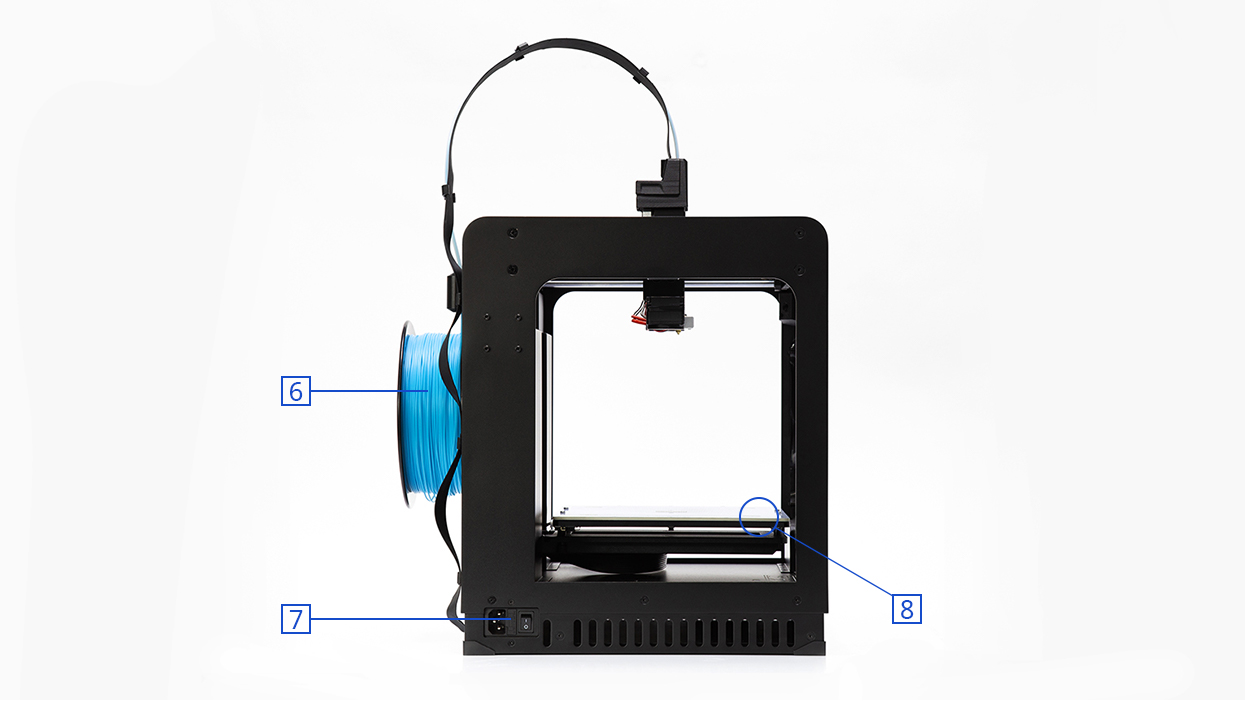

Left-Side View

  • Material Spool
  • Power Connector and Switch
  • Platform
3

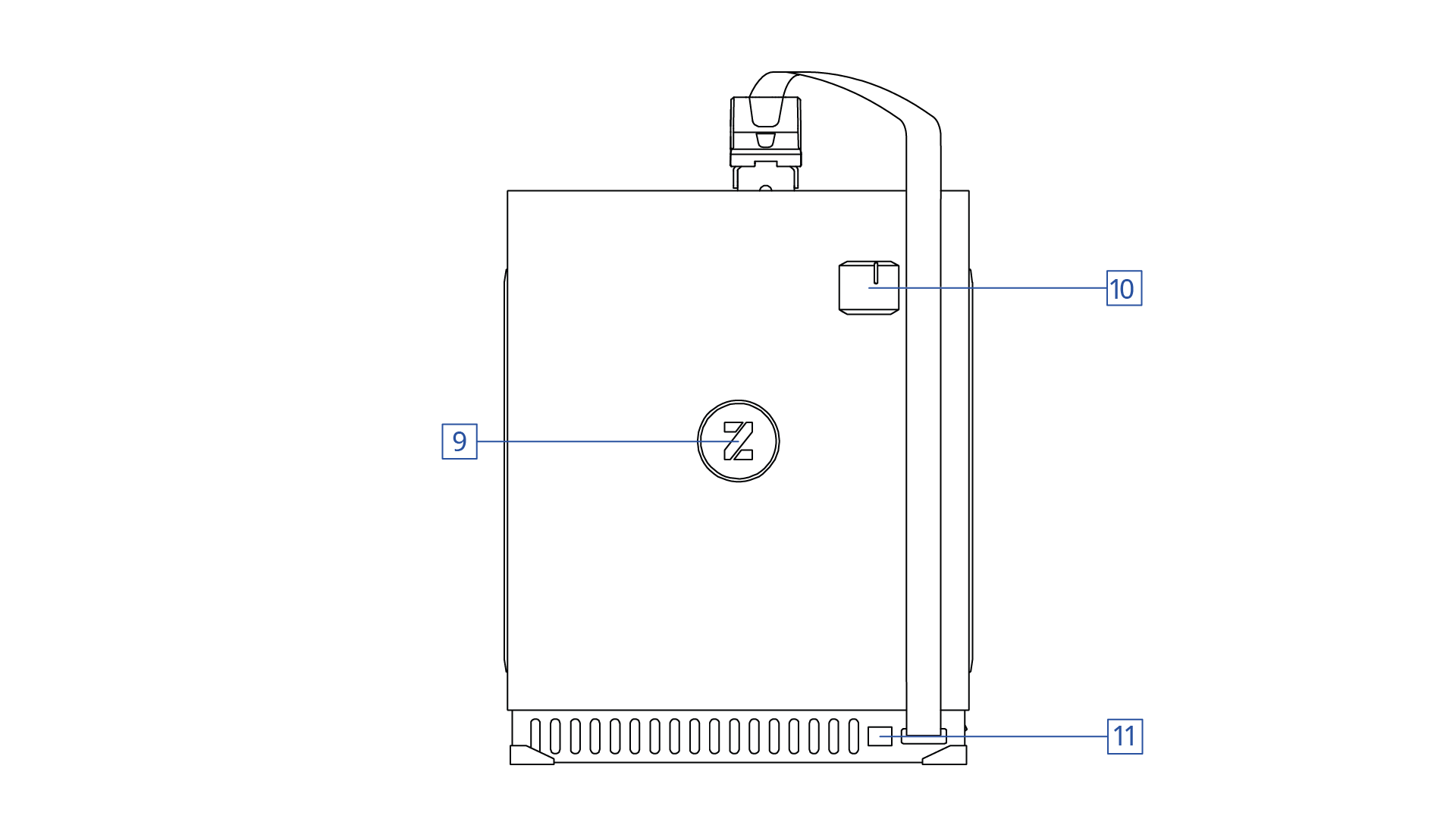

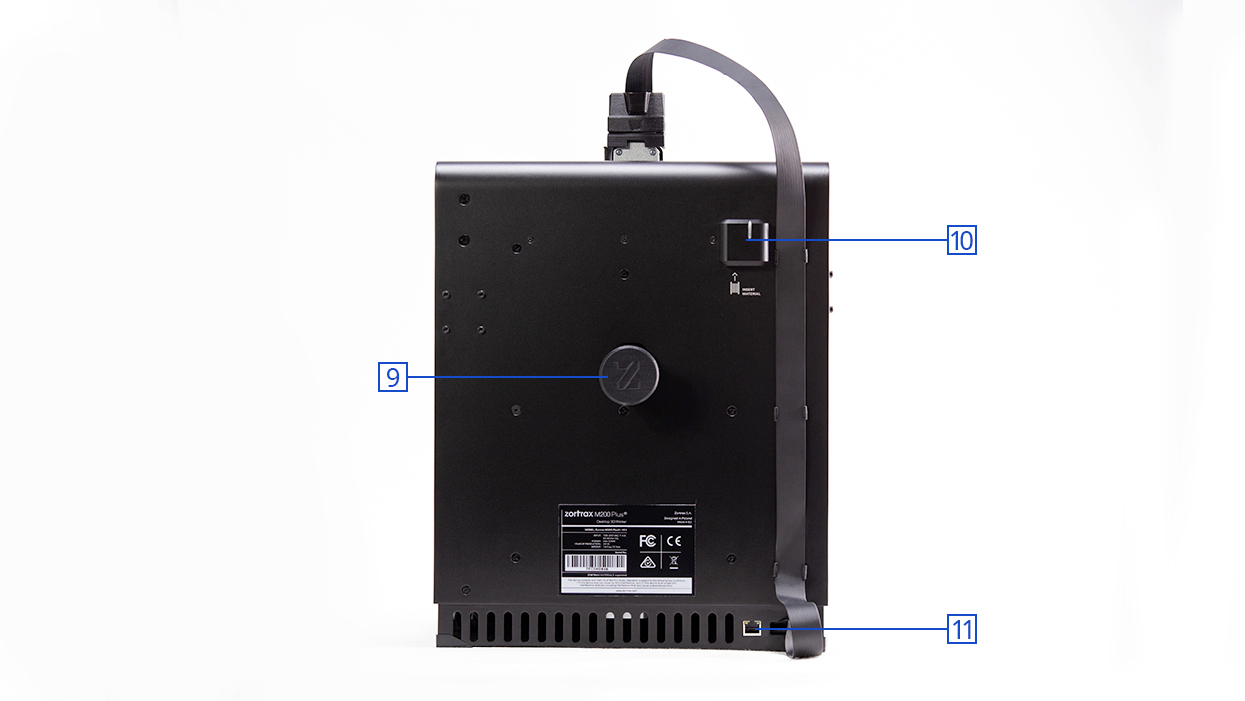

Back View

  • Spool Holder
  • Material Endstop
  • Ethernet Port
